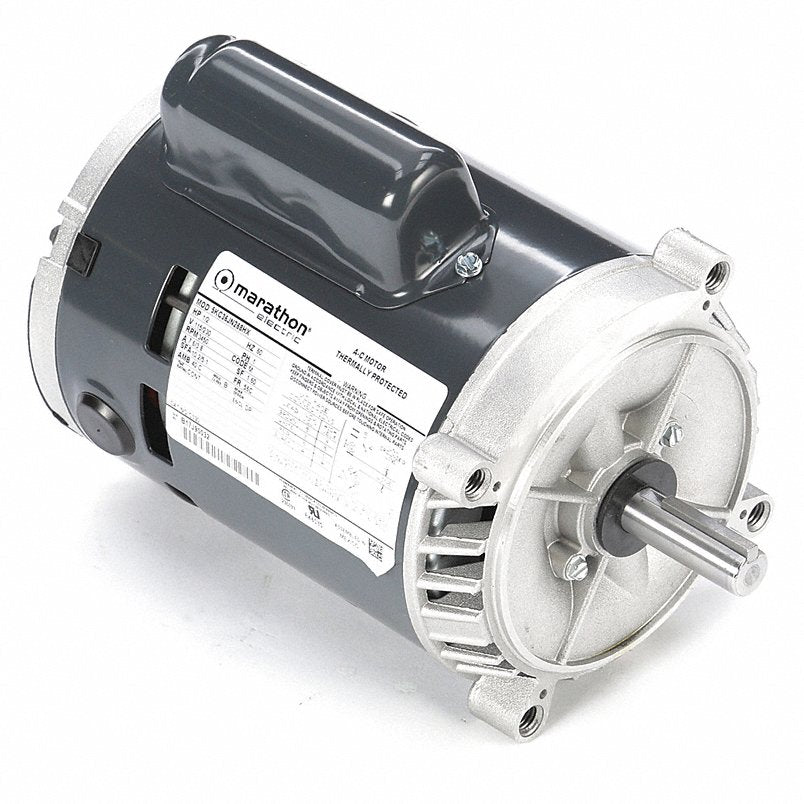

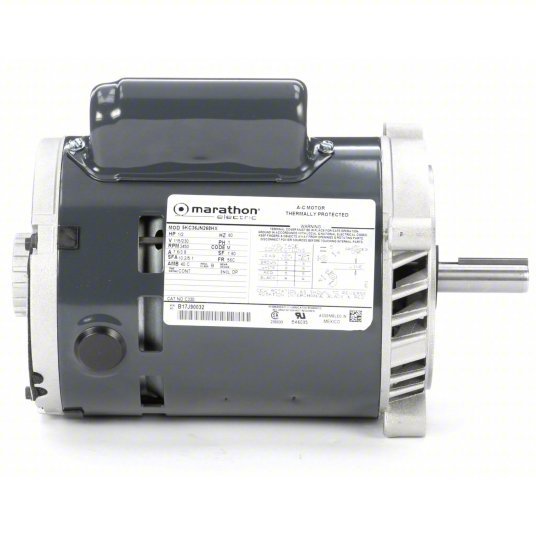

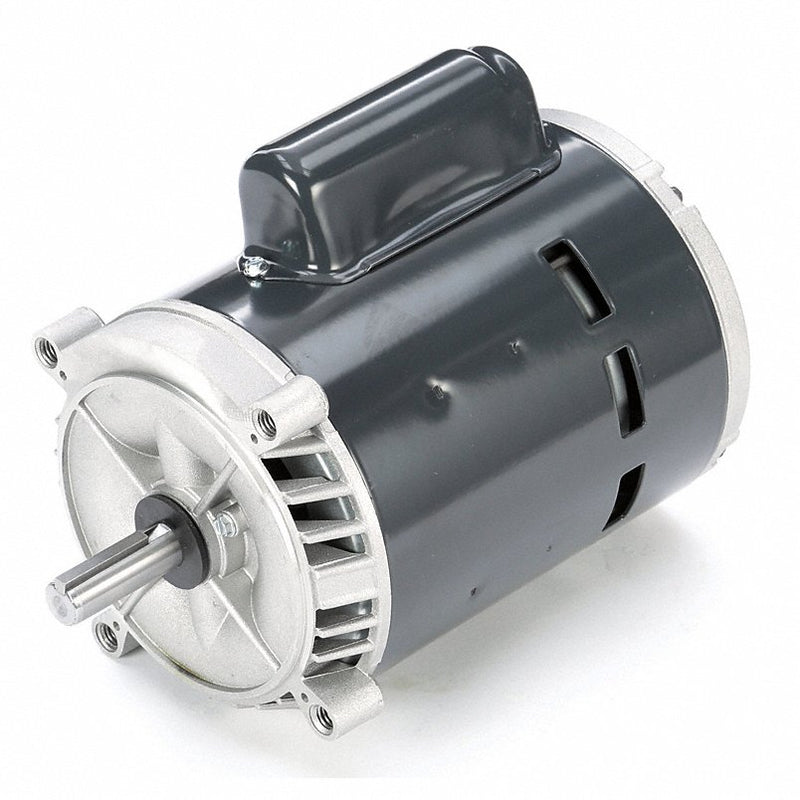

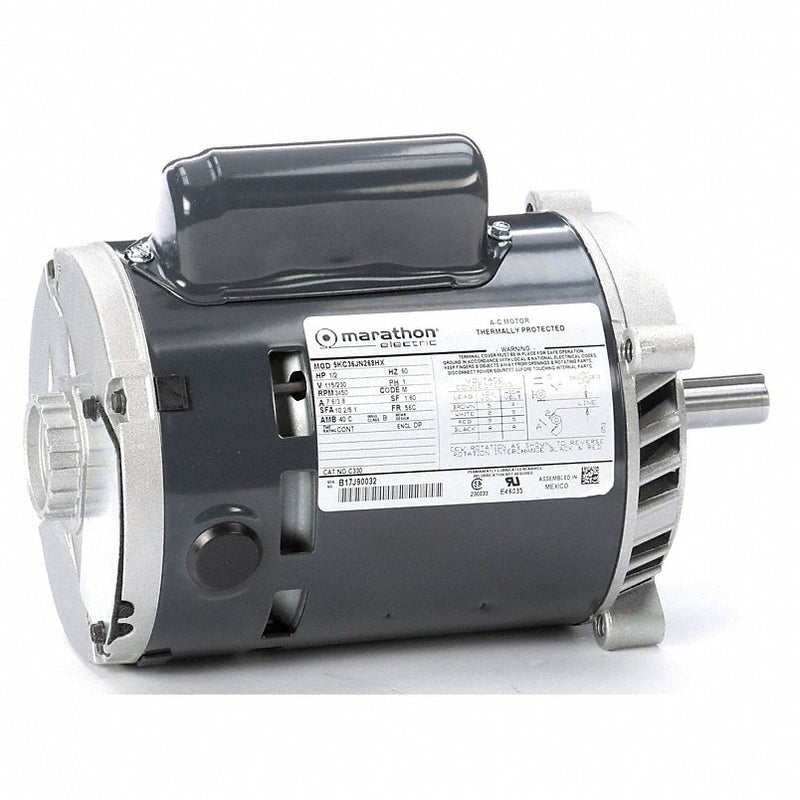

Marathon Motors 5KC36JN268X Jet Pump Motor: Open Dripproof, Face Mounting, 1/2 HP, 3,450 Nameplate RPM, CW/CCW
Jet Pump Motor, Body Dia. 5.6 in, Bolt Circle Dia. 2 15/16 in, Duty Cycle Continuous, Frame 56C, Hz 60, Full Load Amps 7.6, 3.8, Height 6 1/2 in, HP 1/2, Ins. Class B, Length Less Shaft 8 7/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
Details
Duty | Continuous |
Item | Jet Pump Motor |
Hz | 60 |
HP | 1/2 |
Motor Bearings | Ball |
Motor Design | Capacitor-Start |
Motor Shaft Rotation | CW/CCW |
Motor Service Factor | 1.6 |
Motor Thermal Protection | Auto |
Shaft Material | Carbon Steel |
Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC |
Standards | CSA, UL |
Motor Mounting Position | All Angle |
Motor Application | Pump |
Motor Enclosure Design | Open Dripproof |
Motor Shaft Design | Keyed |
Nominal Efficiency | 62.3 % |
Ins. Class | B |
Motor Sub Application | Jet Pump |
Max. Ambient Temp. | 40 Degrees C |
Frame | 56C |
Phase | Single |
RPM Range | 3,001-3,600 |
Motor Mounting Type | Face |
Voltage | 115/230V AC |
Full Load Amps | 7.6, 3.8 |
Nameplate RPM | 3,450 |
Usable @ 200V | No |
Motor Frame Material | Steel |
Duty Cycle | Continuous |
Weight | 20 lb |
Usable @ 208V | No |
No. of Speeds | 1 |
Shaft Type | Keyed |
Package Quantity | 1 |
