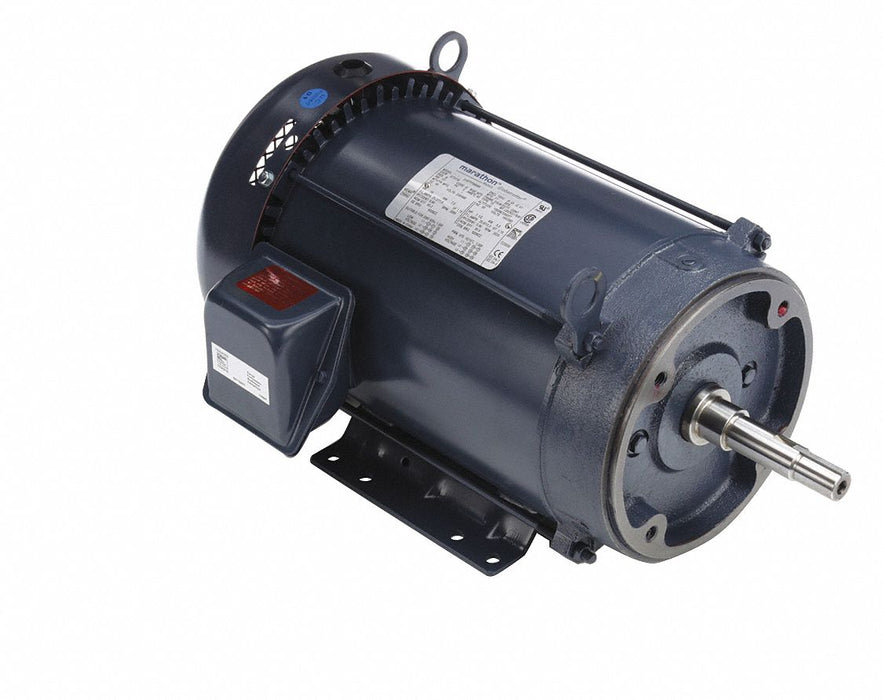

Marathon Motors 215TTFBD6006 Close-Coupled Pump Motor, 215JM Frame Size, C-Face/Rigid Base Mounting, 10 hp

Marathon Motors 215TTFBD6006 Close-Coupled Pump Motor, 215JM Frame Size, C-Face/Rigid Base Mounting, 10 hp

UPC: | Harmonization / Schedule B : 8501.52.4000

Country of Origin: Mexico | Shipping Weight: 162.0 lbs

$2,830.44 - $2,830.44
$2,830.44
$2,830.44 - $2,830.44
$2,830.44

Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 215JM, Hz 60 Hz, Full Load Amps 23.6/11.8, Height 11 in, HP 10, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1, Length Less Shaft 17 5/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient

Motor Design Three-Phase
HP 10
RPM Range 3,001-3,600
Nameplate RPM 3,520
Voltage 230/460V AC
Frame 215JM
Motor Mounting Type Face/Base
Motor Service Factor 1.15
Phase Three
Ins. Class F
Duty Continuous
CC Number CC003A
Motor Efficiency Group NEMA Premium Efficient
Motor Enclosure Design Totally Enclosed Fan-Cooled
Full Load Amps 23.6/11.8 A
Hz 60 Hz
Motor Sub Application Close-Coupled Pump
Motor Thermal Protection None
Inverter Rated Inverter Rated
Motor Bearings Ball
Frame Material Steel
Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Shaft Rotation CW/CCW
Motor Application Pump
Motor Shaft Design JM Threaded
Motor Frame Material Steel
Max. Ambient Temp. 40 Degrees C
Standards CE Mark, CSA Certified, UL Recognized
Nominal Efficiency 90.2 %
Green Certification or Other Recognition NEMA Premium(R) Rated
Weight 170 lb
Conduit Box Location Exterior
Motor Mounting Position Horizontal
Inverter Rating 10:1
Usable @ 208V Not Usable at 208V
Usable @ 200V Not Usable at 200V
No. of Speeds 1
NEMA Design B
Duty Cycle Continuous
Conduit Box Position F1, F2
Shaft Thread Type JM
NEMA Design Class B
Application Pump
Number of Speeds 1
Motor Enclosure Type Totally Enclosed Fan Cooled
Nameplate Service Factor @ 60 Hz 1.15
Efficiency Rating Premium Efficiency (IE3)
Frequency 60 Hz
Insulation Class F
Product Type Pump Motor
Ambient Temperature - Maximum 40 Degrees C
Mounting Position Horizontal
Full Load Current @ 60 Hz 23.6/11.8 A
Bearing Type Ball
Shaft Design Threaded
Country of Origin Mexico
