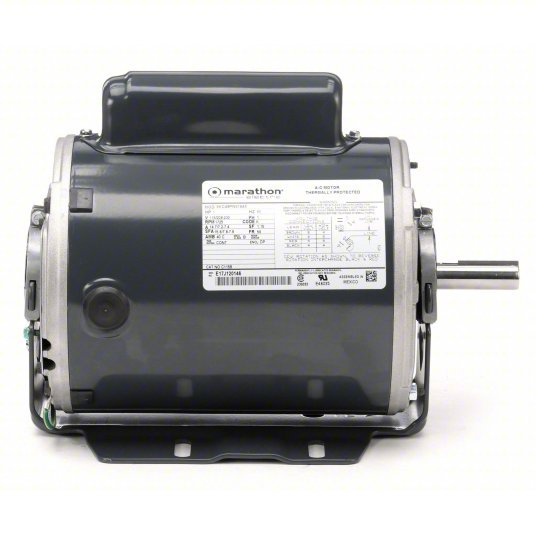

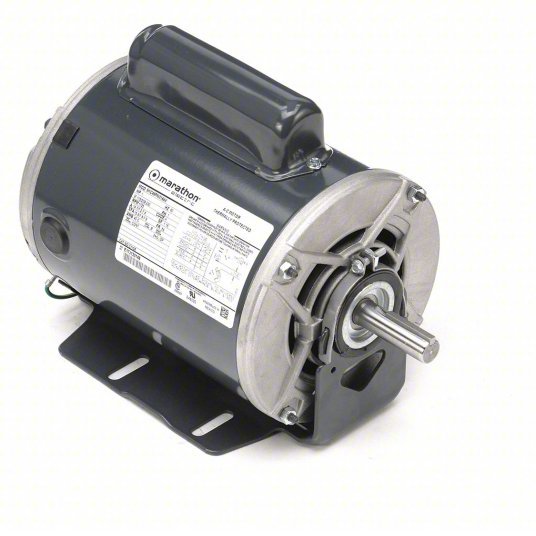

Marathon 5KC49PN0164X General Purpose Motor Open Dripproof, Cradle Base Mount, 1 HP, 1,725 Nameplate RPM - KVM Tools Inc.KV46N388

Marathon 5KC49PN0164X General Purpose Motor Open Dripproof, Cradle Base Mount, 1 HP, 1,725 Nameplate RPM

Name: Marathon 5KC49PN0164X General Purpose Motor Open Dripproof, Cradle Base Mount, 1 HP, 1,725 Nameplate RPM
Brand: Marathon Motors
Price: 575.1 USD
Availability: InStock

UPC: 818257160978 | Harmonization / Schedule B : 8501.40.4040

Country of Origin: Mexico | Shipping Weight: 29 lbs

$575.10 - $575.10

$575.10

$575.10 - $575.10

$575.10

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.7/7.2-7.4 A, 56 Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle

Motor Enclosure Design	Open Dripproof
Motor Mounting Type	Cradle Base
HP	1
Voltage	115/208-230V AC
Frame	56
Motor Thermal Protection	Auto
Motor Service Factor	1.15
No. of Speeds	1
Voltage Compatibility	115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application	General Application
Nameplate RPM	1,725
Motor Frame Material	Steel
Motor Mounting Position	All Angle
Motor Shaft Design	Keyed
Motor Shaft Rotation	CW/CCW
Motor Design	Capacitor-Start
Standards	CSA Certified, UL Listed
Nominal Efficiency	70 %
Max. Ambient Temp.	104 Degrees F
Full Load Amps	14.7/7.2-7.4 A
Frame Material	Rolled steel
Motor Bearings	Ball
Ins. Class	B
RPM Group	1701-1800
Inverter Rated	No
Hz	60 Hz
Phase	Single
Duty	Continuous
Usable @ 200V	No
Usable @ 208V	Yes
Duty Cycle	Continuous
Weight	29 lb
Capacitor Required	Yes
