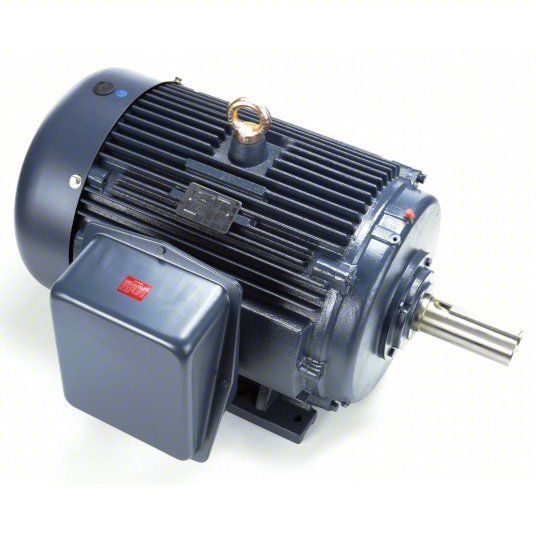

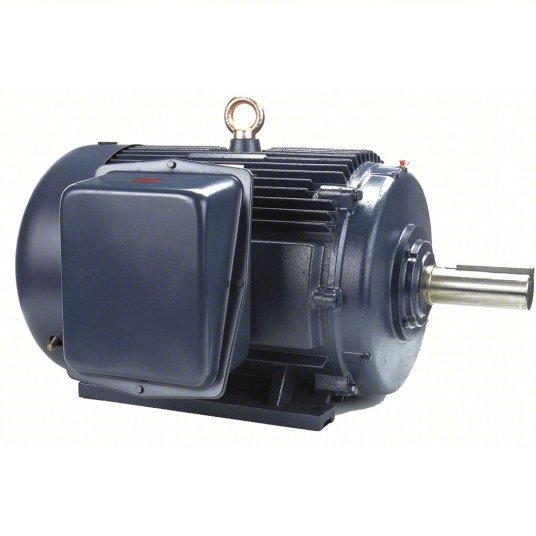

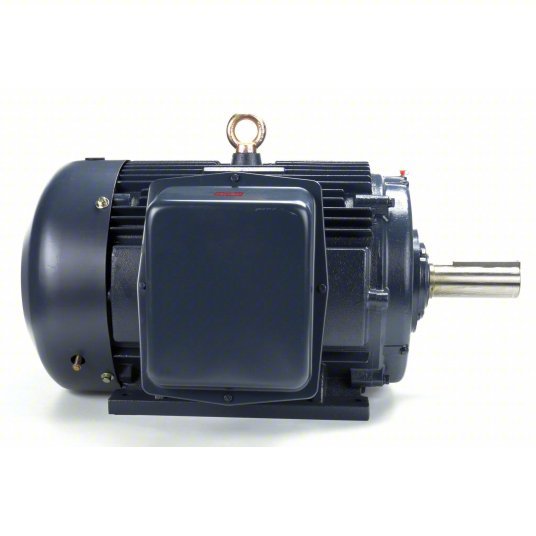

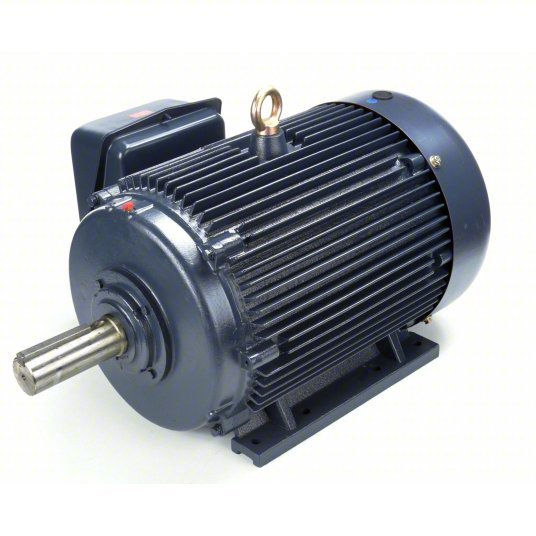

Marathon 405TTFCD6036 3-Phase General Purpose Motor, 100 HP, 405T Frame, 230/460V AC Voltage, 1785 rpm Nameplate RPM

UPC: | Harmonization / Schedule B : 8501.51.3040

Country of Origin: Mexico | Shipping Weight: 1458 lbs

Original price $10,324.59 - Original price $10,324.59
Original price
$10,324.59
$10,324.59 - $10,324.59
Current price $10,324.59
General Purpose Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 100 HP, Nameplate RPM 1785 rpm, Frame 405T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 226.0/113.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, Continuous Duty, 1701-1800
HP 100
Nameplate RPM 1785 rpm
Voltage 230/460V AC
Motor Mounting Type Rigid Base
Full Load Amps 226.0/113.0 A
Frame 405T
Motor Bearings Ball
Motor Service Factor 1.15
Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Fan-Cooled
RPM Range 1701-1800
Phase Three
No. of Speeds 1
Motor Application General Application
Motor Shaft Rotation CW/CCW
Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz 60 Hz
Ins. Class F
Max. Ambient Temp. 40 Degrees C
Motor Frame Material Cast Iron
Motor Mounting Position Horizontal
Motor Shaft Design Keyed
Nominal Efficiency 95.4 %
Standards CSA Certified, UL Listed
CC Number CC003A
Inverter Rated Yes
Motor Thermal Protection None
Includes Conduit Box
Green Certification or Other Recognition NEMA Premium(R) Rated
NEMA Design B
Usable @ 200V No
Usable @ 208V No
Weight 1,325 lb
Duty Cycle Continuous
Capacitor Required No
Inverter Rating 10:1
