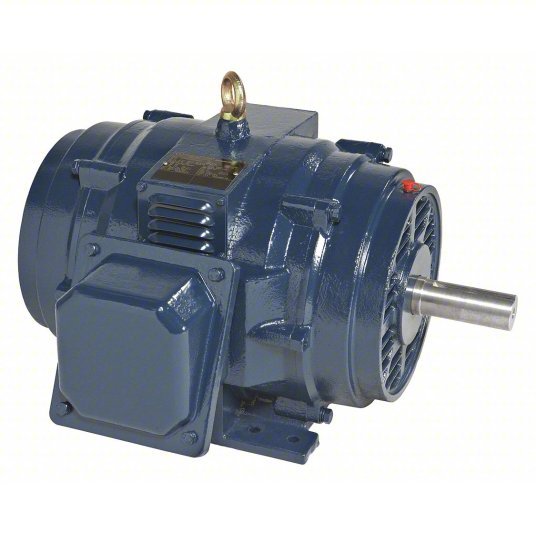

General Purpose Motor, 3-Phase, Open Dripproof Motor Enclosure Design, 50 HP, Nameplate RPM 1185 rpm, Frame 365T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 120.0/60.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.1 Percent, Continuous Duty, 1,101-1,200, CSA Certified, UL Recognized
| HP |
50 |
| Nameplate RPM |
1185 rpm |
| Voltage |
230/460V AC |
| Motor Mounting Type |
Rigid Base |
| Full Load Amps |
120.0/60.0 A |
| Frame |
365T |
| Motor Bearings |
Ball |
| Motor Service Factor |
1.15 |
| Motor Design |
3-Phase |
| Motor Enclosure Design |
Open Dripproof |
| RPM Range |
1,101-1,200 |
| Phase |
Three |
| No. of Speeds |
1 |
| Motor Application |
General Application |
| Motor Shaft Rotation |
CW/CCW |
| Voltage Compatibility |
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC |
| Hz |
60 Hz |
| Ins. Class |
F |
| Max. Ambient Temp. |
40 Degrees C |
| Motor Frame Material |
Steel |
| Motor Mounting Position |
Horizontal |
| Motor Shaft Design |
Keyed |
| Nominal Efficiency |
94.1 % |
| Standards |
CSA Certified, UL Recognized |
| CC Number |
CC003A |
| Motor Thermal Protection |
None |
| Inverter Rated |
Yes |
| Includes |
Conduit Box |
| Green Certification or Other Recognition |
NEMA Premium(R) Rated |
| Weight |
756 lb |
| NEMA Design |
B |
| Duty Cycle |
Continuous |
| Usable @ 200V |
No |
| Usable @ 208V |
No |
| Inverter Rating |
10:1 |
