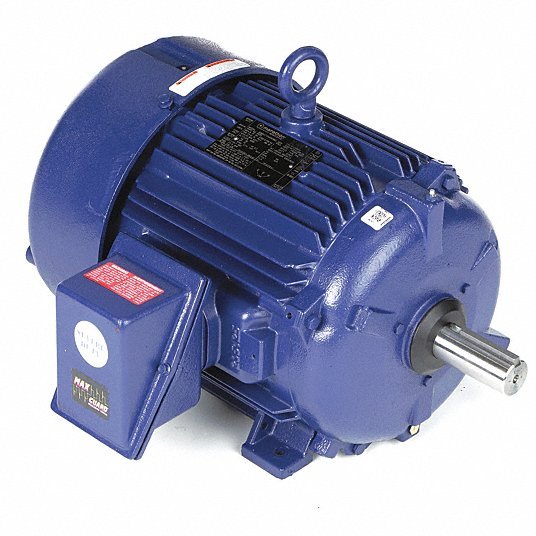

Marathon 254TTFCD6526 Severe Duty Motor Totally Enclosed Fan Cooled, Rigid Base Mount, 15 HP, 460V AC

Severe Duty Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 15 HP, Nameplate RPM 1772 rpm, Frame 254T, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 18.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class H, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.1 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Listed

Nameplate RPM	1772 rpm	Voltage	460V AC
Motor Mounting Type	Rigid Base	Full Load Amps	18.8 A
Frame	254T	Motor Bearings	Ball
Motor Service Factor	1.15	Motor Design	Three-Phase
Motor Enclosure Design	Totally Enclosed Fan Cooled	RPM Range	1701-1800
Phase	Three	No. of Speeds	1
Motor Application	General Purpose	Motor Shaft Rotation	CW/CCW
Voltage Compatibility	200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC	Hz	60 Hz
Ins. Class	H	Max. Ambient Temp.	40 Degrees C
Motor Frame Material	Cast Iron	Motor Mounting Position	Horizontal
Motor Shaft Design	Keyed	Nominal Efficiency	94.1 %
Standards	CE, CSA, UL Listed	CC Number	CC003A
Includes	Max Guard Insulation	Motor Thermal Protection	None
Green Certification or Other Recognition	NEMA Premium(R) Rated	Inverter Rated	Yes
NEMA Design	B	Duty Cycle	Continuous
Usable @ 208V	No	Weight	347 lb
Usable @ 200V	No	Temp. Code	T2B
Hazardous Location Class	1 C,D / 2 F,G	HP	15
