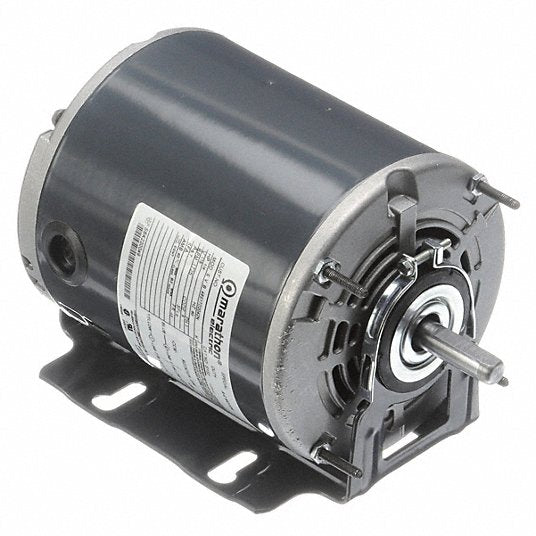

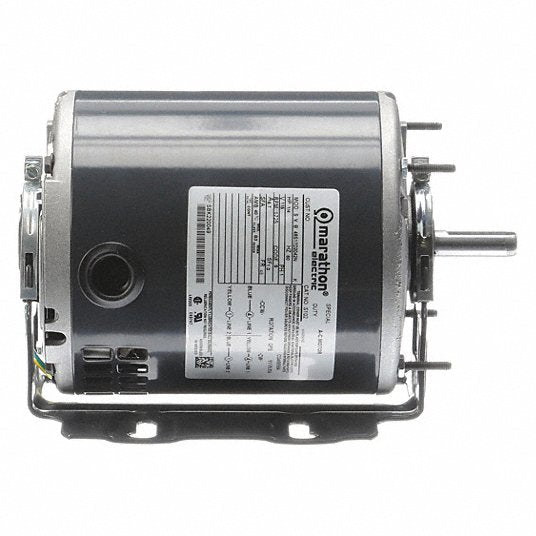

Marathon 048S17D2042 GP Motor 1/4 HP 1725 RPM 115V AC 48

UPC: 818255993394 | Harmonization (Schedule B): 8501.40.4040

SKU 048S17D2042
Original price $225.85 - Original price $225.85
Original price
$225.85
$225.85 - $225.85
Current price $225.85
General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/4 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 5.7 A, 48 Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
Motor Mounting Type Cradle Base
Motor Application General Application
Motor Bearings Ball
RPM Range 1,701-1,800
Nameplate RPM 1,725
RPM Group 1701-1800
Motor Thermal Protection None
Phase Single
Motor Enclosure Design Open Dripproof
Max. Ambient Temp. 104 Degrees F
Motor Design Split-Phase
No. of Speeds 1
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Item General Purpose Motor
HP 1/4 hp
Voltage 115V AC
Ins. Class B
Frame Material Rolled steel
Motor Shaft Rotation CW/CCW
Duty Continuous
Motor Frame Material Steel
Standards CSA, UL recognized
Nominal Efficiency 52.5 %
Frame 48
Hz 60 Hz
Full Load Amps 5.7 A
Motor Service Factor 1
Usable @ 208V No
Weight 13 lb
Duty Cycle Continuous
Usable @ 200V No
Motor Mounting Position Horizontal
