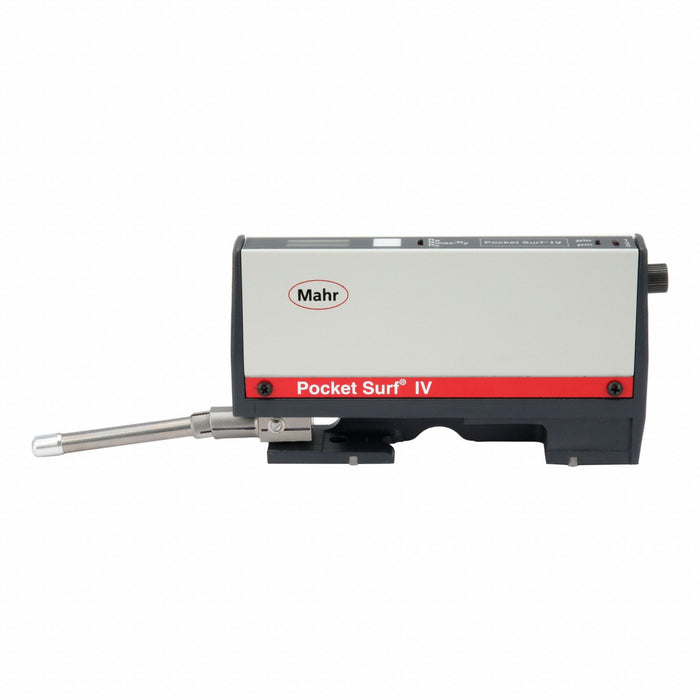

Mahr 2191800 Marsurf Pocket Surf IV Surface Roughness Tester

Mahr 2191800 Marsurf Pocket Surf IV Handheld Surface Roughness Tester, Ra/Rmax/Ry/Rz, 10 μm Piezoelectric Probe, Cabled RS232C/USB

UPC: | Harmonization / Schedule B : 9031.80.0080

Country of Origin: United States | Shipping Weight: 1.7 lbs

$3,312.49 - $3,312.49
$3,312.49
$3,312.49 - $3,312.49
$3,312.49

Handheld Surface Roughness Tester

Measuring Range Ra: 6.35 micron m/250 micron in, Ry, Rmax, Rz: 25.3 micron m/999 micron in
Profile Ra, Rz, Rmax
Number of Sampling Spans 1; 3; 5
Probe 10 micron
Analysis Graph No
Drive Unit Traverse
Tester Series Marsurf Pocket Surf IV
Detector 15 mN
For Use With Pocket Surf Probes
Power Supply 9V Battery
Measuring Range Ra 6.35 micrometer/250 microinch
Compatible Data Output Cable Mfr. No. 4346020, Mfr. No. 4346023
Minimum Operating Temperature - F 41 Degrees F
Maximum Operating Temperature - F 112 Degrees F
Parameters Measured Ra, Rmax/Ry, Rz
Detector Measuring Force 15 mN
Probe Sensor Type Piezoelectric
SPC Output Yes
Minimum Operating Temperature - C 5 Degrees C
Measuring Range Rz 25.3 micrometer/999 microinch
Maximum Operating Temperature - C 45 Degrees C
Operating Position Horizontal, Vertical, Upside Down
Probe Positions 90 degrees, 180 degrees, 270 degrees, Axial (Folded)
Case Type Carrying Case
Display Functions LCD
IP Rating Not Rated
Data Output Type Cabled
Measuring Range (mm) 6.35 micron m
Drive Unit Principle Skid
Construction Cast Aluminum
Measuring Condition Standards DIN ISO/JIS
Profile Resolution 0.01 micron, 1 microinch
Number of Parameters Measured 4
Data Output Connection Type RS232C, USB
Measuring Range (In.) 6.35 micrometer/250 microinch
Memory Storage Capacity 1
Operating Temperature Range 41 Degrees F to 112 Degrees F / 5 Degrees C to 45 Degrees C
Includes Printer No
Calibration Functions Digital Calibration
Product Type Handheld Surface Roughness Tester
Ra Measured - Maximum 30 um
Inches Measured - Minimum 0.075 in
Operating Temperature - Minimum 41 Degrees F
Rz Measured - Maximum 200 um
Operating Temperature - Maximum 112 Degrees F
Millimeters Measured - Maximum 5 mm
Millimeters Measured - Minimum 2 mm
Inches Measured - Maximum 0.195 in
Country of Origin United States
