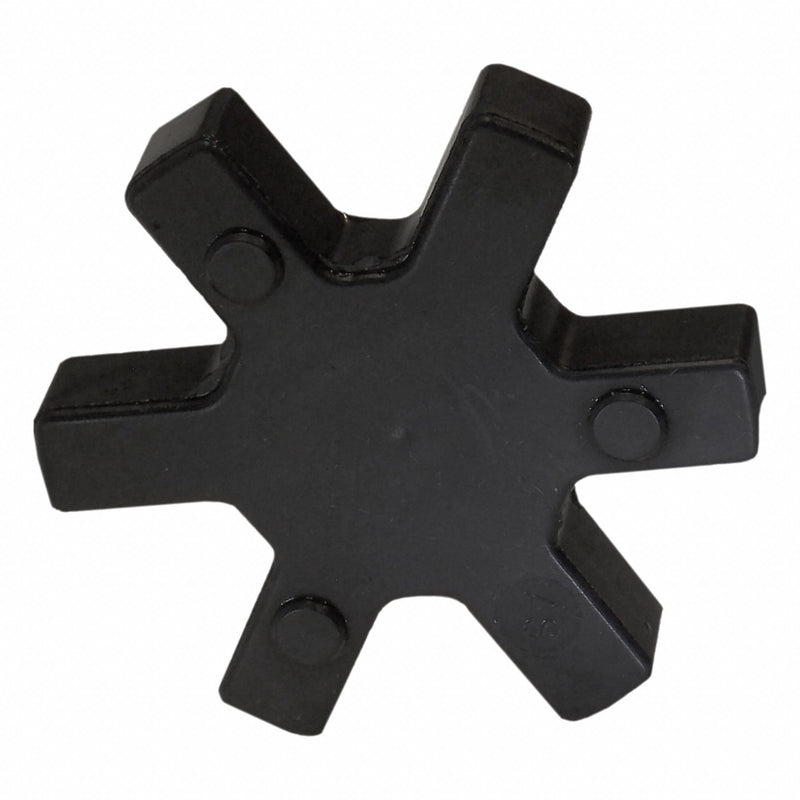

Lovejoy 68514412409 Jaw Coupling Insert, L225, Solid Center Rubber Spider, 4-63/64 in OD

Lovejoy 68514412409 Jaw Coupling Insert, L225, Solid Center Rubber Spider, 4-63/64 in OD

UPC: 685144124098 | Harmonization / Schedule B : 8483.60.8000

Country of Origin: United States | Shipping Weight: 0.4 lbs

$137.92 - $137.92
$137.92
$137.92 - $137.92
$137.92

Jaw Coupling Insert, Coupling Size L225, Outside Diameter 4 63/64 in, System of Measurement Inch, Maximum Speed 1,750 RPM, Horsepower @ 100 RPM 3.7, Spider Material Rubber, Maximum Torque 2,340 in-lb, Parallel Misalignment 0.15 in, Durometer Hardness 80A, Axial Motion Not Applicable, Angular Misalignment 1 Degrees , Color Black, For Misalignment Type Angular, Parallel, Maximum Operating Temperature 212 Degrees F, Minimum Operating Temperature -40 Degrees F, Resistance Properties Oil Resistant

Color Black
Maximum Operating Temperature 212 Degrees F
Standards ANSI B92.1A, ANSI/AGMA 9002-B04, ANSI/AGMA 9112-A04, DIN 5480
Spider Material Rubber
Resistance Properties Oil Resistant
Durometer Hardness 80A
Angular Misalignment 1 Degrees
Weight 0.38 lb
System of Measurement Inch
Parallel Misalignment 0.15 in
Minimum Operating Temperature -40 Degrees F
For Misalignment Type Angular, Parallel
Spider Type Solid Center Spider
Horsepower @ 100 RPM 3.7
Maximum Torque 2,340 in-lb
Maximum Speed 1,750 RPM
Country of Origin United States
