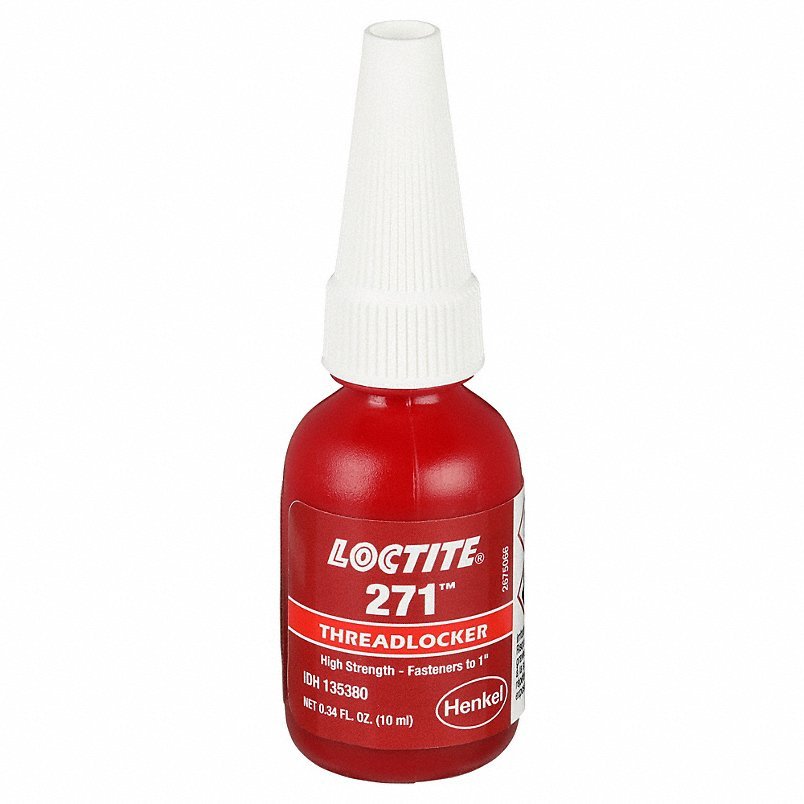

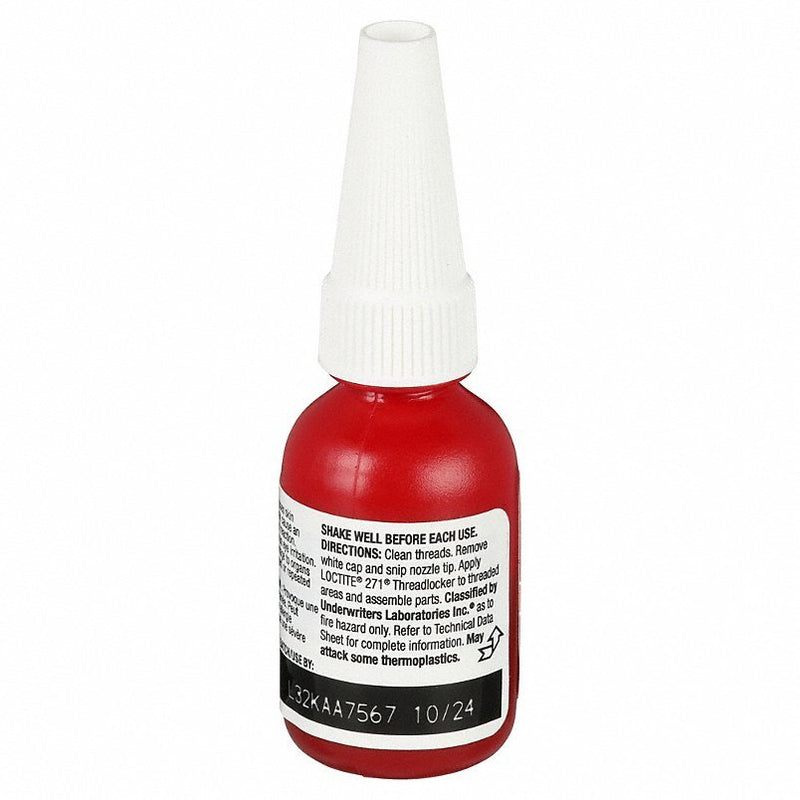

Loctite 135380 Threadlocker 271, 10mL Bottle, Red

UPC: 079340271210 | Harmonization (Schedule B): 3506.10.5000

Original price $27.55 - Original price $27.55
Original price
$27.55 - $27.55
Current price $27.55

High-Strength Threadlocker, For Material Type Brass, Bronze, Copper, Iron, Manganese, Monel, Nickel, Steel, Threadlocking Strength High, Color Red, Series 271, Container Size 0.34 fl oz, Container Type Bottle, For Maximum Thread Diameter 1 in, Working Time 5 min, Breakaway Torque 150 in-lb, Cure Type Anaerobic, Compatible Primer Series Loctite 7649, Threadlocker Properties Oil Tolerant, Standards ASTM D-5363, MIL-S-46163-A, UL Listed, Chemical Base Dimethacrylate

Threadlocker Strength High
Threadlocker Color Red
Threadlocker Container Bottle
Physical Form Liquid
Begins to Harden 10 min
Threadlocker Disassembly Permanent
Threadlocker Classification Threadlocker
Chemical Type Anaerobic
Series LOCTITE 271
Viscosity 500 cP
Temp. Range -65 Degrees to 300 Degrees F
Application For Fasteners Up to 1 in Dia, Bolts, Studs and Press Fits. Requires Heat and/or Special Tools For Removal
Gap Fill 0.007 in
Item High-Strength Threadlocker
Standards ASTM-D5363 Group 2 Class 2 Grade 1, MIL-S-46163A Type I Grade K, OSHA Hazard Communication, RoHS Compliant
Full Cure 24 hr
Removable With Heat and Hand Tools
Flash Point Greater Than 93.3 Degrees C
Specific Gravity 1.1
Color Red
Container Type Bottle
Storage Requirements 8 Degrees to 21 Degrees C
VOC Content 7.81 g/L
VOC Content Weight Percentage 0.01 %
Subhead Properties Oil Tolerant
Breakaway Torque 150 in-lb
Prevailing Torque 200 in-lb
Working Time 5 min
Threadlocking Strength High
Compatible Primer Series Loctite 7649
Breakaway Torque Range 101 in-lb to 200 in-lb
Brand & Series LOCTITE 271
Removal Method Hand Tool and Heat
Recommended Surface Preparation Dry Surface
Threadlocker Properties Oil Tolerant
Torque and Strength 150 in-lb High
Product Form Liquid
Clean Up Method Solvent, Wire Brush
Properties & Color Oil Tolerant Red
VOC Content Range 10 g/L and Under
For Material Type Brass, Bronze, Copper, Iron, Manganese, Monel, Nickel, Steel
Maximum Viscosity 600 cps
Mixing Required No
Compatible Primer 135286
Minimum Operating Temperature -65 Degrees F
Minimum Viscosity 400 cps
Maximum Operating Temperature 300 Degrees F
Compatible Materials Brass, Bronze, Copper, Iron, Manganese, Nickel, Steel
Chemical Base Dimethacrylate
Threadlocking Properties Oil Tolerant
Cure Type Anaerobic
Full Cure Time 1 day
Working Time Range 5 min or Less
Package Quantity 1
