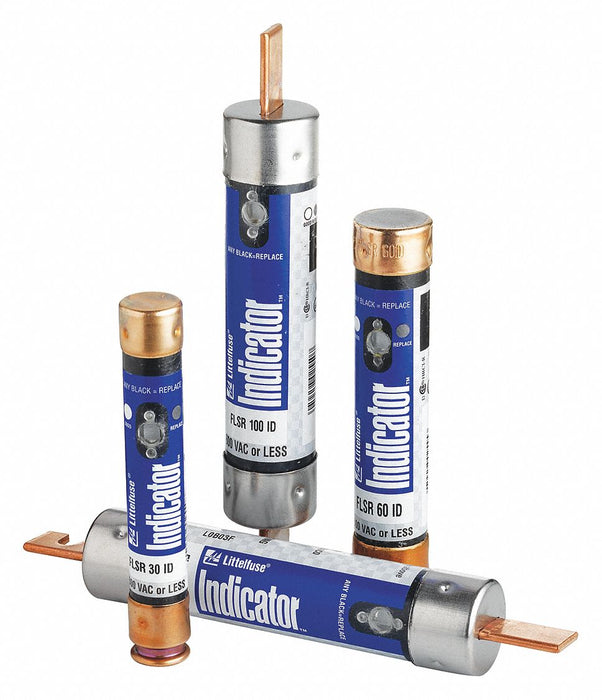

Littelfuse FLSR100 Class RK5 Time-Delay Fuse

Littelfuse FLSR100 Fuse, 100 A, 600V AC / 300V DC, Class RK5, Time-Delay, FLSR Series

UPC: 079458170825 | Harmonization / Schedule B : 8536.10.0040

Country of Origin: Mexico | Shipping Weight: 0.56 lbs

$73.98 - $73.98
$73.98
$73.98 - $73.98
$73.98

Littelfuse FLSR100 Fuse, 100 A, 600V AC, 300V DC, Class RK5, FLSR Series, Time-Delay, Cylindrical body, Rejection-style fuse block. Interrupt Rating 200kA at 600V AC. Dual-element design provides time-delay performance for motor circuits, transformer primaries, and other inductive loads. Equivalent to Bussmann FRN-R-100, Mersen TR100R. UL 248-12 listed, CSA Class 1422-01 certified, Guide JDDZ.

Class RK5
Series FLSR
Speed Time-Delay
Amps 100 A
AC Voltage Rating 600V AC
DC Voltage Rating 300V DC
Visual Indication Non-Indicating
Interrupt Rating 200kA at 600V AC
Body Style Cylindrical
Fits Fuse Block Style Rejection
Element Dual
Equivalent Brand and Series Bussmann FRN-R, Mersen TR-R
Standards UL 248-12 Guide JDDZ, CSA Class 1422-01
Connection Type Ferrule End x Ferrule End
Country of Origin Mexico
