Lincoln K2806-1 Plasma Cutter, 10-25A, Inverter, 70 PSI
UPC: 015082884851 | Harmonization (Schedule B): 8456.40.1010
SKU KV28MG88
Original price
$2,671.10
-
Original price
$2,671.10
Original price
$2,671.10
$2,671.10
-
$2,671.10
Current price
$2,671.10
Please confirm stock prior to order. Plasma Cutter with Built-In Air Compressor, Cutting Configuration Plasma Cutting, Effective Input Current 21.7 A @ 208/230 V (Single-Phase), For Material Type Aluminum, Brass, Copper, Mild Steel, Stainless Steel, For Maximum Material Thickness 1/2 in, For Minimum Material Thickness 5/16 in, Input Frequency 60 Hz, Input Voltage 208 V AC, 230 V AC, Max. Input Current 21.7 A @ 208/230 V (Single-Phase), Open Circuit Voltage 460 V DC, Phase Single-Phase, Plasma Cutter Model K2806-1
| Item | Plasma Cutter with Built-In Air Compressor |
| Application | Metal Cutting |
| OCV | 460V DC |
| Input (Amps) | 21.7A |
| Series | Tomahawk 375 Air |
| Cutting Capacity (In.) | 1/2 in |
| Rated Output | 2/5 A |
| Design | Inverter |
| PSI | 70 |

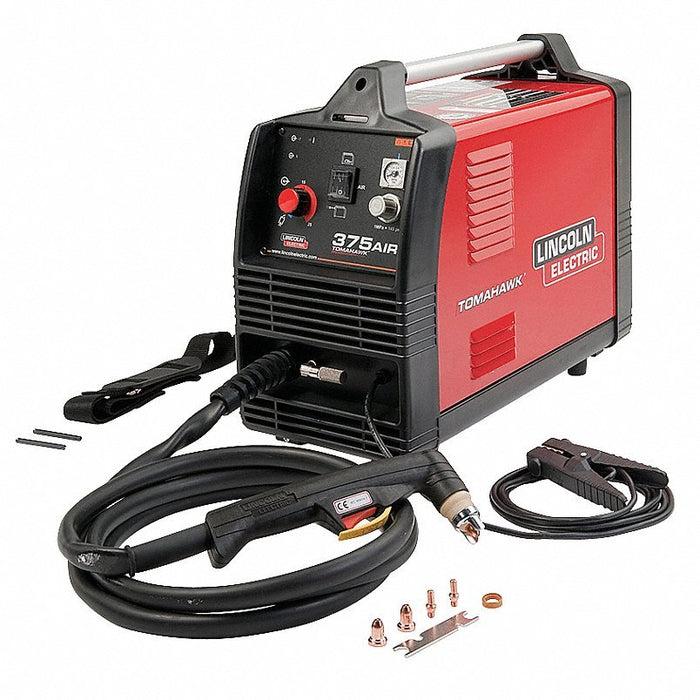

| Includes | Air Regulator, Internal Air Compressor, Internal Water Separator, Lincoln Electric LC25 Torch with 10 ft Cable, Pressure Gauge, Shoulder Strap and Input Power Cord, Spare Consumables, Work Clamp and Cable |
| Duty Cycle | 100 % |
| Input Voltage | 208 V AC, 230 V AC |
| Plasma Cutting Output @ Duty Cycle | 13 A @ 85.2 V, 100%, 18 A @ 87.2 V, 60%, 25 A @ 90 V, 35% |
| Open Circuit Voltage | 460 V DC |
| Phase | Single-Phase |
| Max. Amperage Range | Less than 50 A |
| Max. Input Current | 21.7 A @ 208/230 V (Single-Phase) |
| Standards | CSA, ISO |
| Plasma Torch Type | Handheld |
| Plasma Cutter Model | K2806-1 |
| For Material Type | Aluminum, Brass, Copper, Mild Steel, Stainless Steel |
| Input Voltage (Nominal) | 208V |
| Plasma Torch | 10 ft Handheld |
| Plasma Gas Type | Air |
| Maximum Output Current | 25 A |
| Input Frequency | 60 Hz |
| Cutting Configuration | Plasma Cutting |
| Plasma Cutter Type | Plasma Cutter with Built-In Air Compressor |
| Color | Red |
| Rated Output at Duty Cycle | 13 A @ 100%, 18 A @ 60% |
| Maximum Pressure - Air Compressor | 80 psi |
| Plug Type | 6-50P |
| For Maximum Material Thickness | 1/2 in |
| Welding Processes | Plasma Cutting |
| Effective Input Current | 21.7 A @ 208/230 V (Single-Phase) |
| Required Air Flow | 2.1 cfm |
| For Minimum Material Thickness | 5/16 in |
| Plasma Cutting Minimum Output Current | 10 A |
| Weight | 18.14 kg |
| Process | Plasma Cutting |
| Package Quantity | 1 |
