| Item |

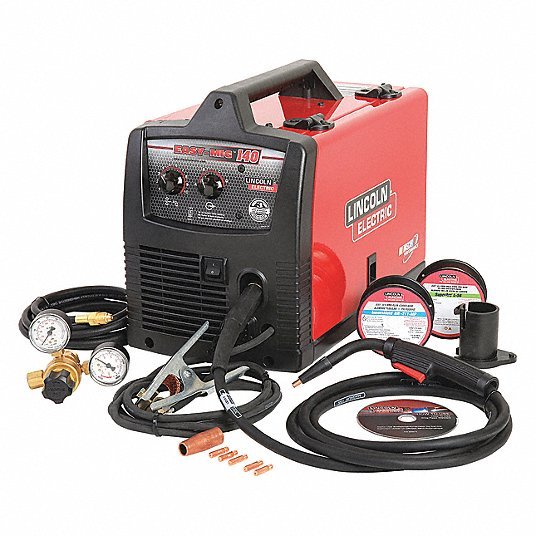

MIG Welder |
| Series |
Easy MIG 140 |
| Input Voltage |
120V AC |
| Welded Material |
Mild Steel, Aluminum, Stainless Steel |
| Mild Steel - Material Thickness |
24 ga to 3/16 in |
| Phase |
1 |
| Welding Processes |
Flux Core, MIG |
| Hz |
60 |
| Portability |
Handheld Portable |
| Application |
For Metal Fabrication, Maintenance and Repair, Farm/Home, Light Industrial |
| Rated Output |
90A @ 19.5V DC |
| Input Amps |
20 |
| Includes |
MIG Gun and 10 ft Cable Assembly, Contact Tips, Nozzles, Spindle Adapter, 2 Drive Rolls, Knurled Drive Roll, Wire Guide Set, Gas Regulator, 52 in Hose for CO2 Argon Blend Gases, 2 lb MIG Wire, 1lb Flux Cored Wire, Work Clamp and 10 ft Cable |
| Duty Cycle |
20 % |
| Output Range |
30 to 140A DC |
| Features |
Precise Wire Drive, Spool Gun Ready, Tool-less Design, Drive Roll and Nozzle Storage |
| Standards |
CSA certified |
| Aluminum - Material Thickness |
22 to 10 ga |
| MIG Welding Output @ Duty Cycle |
90 A @ 19.5 V, 20% |
| Maximum Wire Feed Speed |
500 in/min |
| MIG Welding Minimum Output Current |
30 A |
| MIG Welding Maximum Output Current |
140 A |
| Plug Type |
5-15P |
| For Wire Type |
Flux-Cored, Solid |
| For Minimum Material Thickness |
24 ga (Steel) |
| Kit Includes |
Contact Tips, Drive Rolls, Flow Gauge Regulator & Gas Hose, Flux-Cored Wire, MIG Gun, Solid Wire, Work Cable with Clamp |
| Minimum Wire Feed Speed |
50 in/min |
| Weight |
50 lb |
| Rated Output at Duty Cycle (MIG) |
90 A @ 20% |
| Welder Kit Type |
MIG/Flux-Cored Package |
| Welding Mode |
CV |
| Input Frequency |
60 Hz |
| Color |
Red |
| Input Voltage (Nominal) |
120V |
| For Maximum Material Thickness |
5/16 in (Steel) |
| For Material Type |
Mild Steel, Stainless Steel |
| Max. Amperage Range (MIG) |
Less than 150 A |
| Amperage Range |
30 to 140 A |
| Polarity |
DC |
| Model |
K2697-1 |
| Maximum Amperage Range (MIG) |
Less than 150 A |
| Process |
Flux-Cored Welding (FCAW), MIG Welding (GMAW) |
| brand-mfr model |
LINCOLN ELECTRIC - K2697-1 |
| Package Quantity |
1 |
