| Welder Industrial Class |
Light |
| Item |
TIG Welder |
| Welding Processes |
Stick, TIG |
| Mild Steel - Material Thickness |
0.004 in to 3/8 in |
| Aluminum - Material Thickness |
0.012 in to 3/8 in |
| Input Voltage |
120/230V AC |
| Rated Output |
155A @ 16V, 30% |
| Welder Max. Output Amps |
155 |
| Welder Min. Output Amps |
5 |
| Welder Duty Cycle |
100 % |
| Series |
V155-S |
| Application |
Automotive, Farm, Light Duty Metal Fabrication, Maintenance |
| Welded Material |
Steel |
| Features |
Auto Adaptive Arc Force, Auto Restore Fuse, Dent-Resistant Case Rated for Outdoor Use, Dual Stick Mode |
| Welder Input Hz |
50/60 |
| Input (Amps) |
22.8/28.8 |
| Power Source Weight |
15 lb |
| Includes |

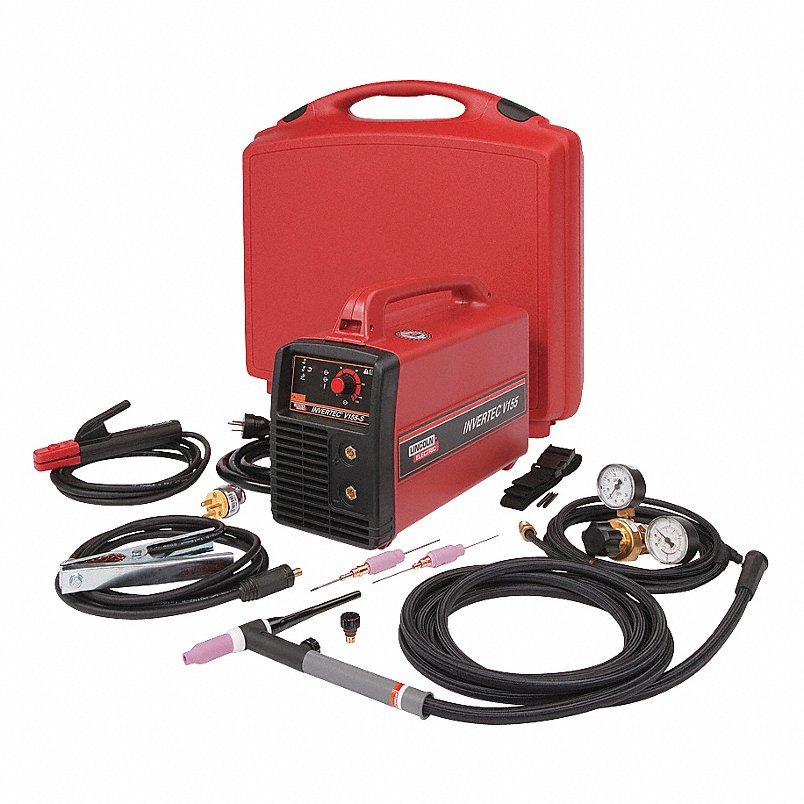

(3) Alumina Nozzles, (3) Collet Bodies, (3) Collets, (3) Tungstens, 10 ft Cable, 120/230V Input Cord 6.6 ft, 120V 20A Plug, Back Cap, Carry Suitcase, Gas Regulator, Shoulder Strap, Stick Electrode Holder, TIG Torch with Ultra-Flex(TM) Cable ,Twist Mate(TM) Adapter |
| Welder Input Phase |
1 |
| Polarity |
DC |
| Welding Mode |
CC |
| Welder Kit Type |
Stick/TIG Package |
| Weight |
30 lb |
| Color |
Red |
| Stick Welding Output @ Duty Cycle |
100 A @ 24 V, 100% (230 V), 100 A @ 24 V, 30% (120 V), 145 A @ 25.8 V, 30% (230 V), 75 A @ 23 V, 100% (120 V) |
| Kit Includes |
Case, Flow Gauge/Regulator & Gas Hose, Stick Electrode Holder with Cable, TIG Torch, Work Cable with Clamp |
| TIG Welding Maximum Output Current |
155 A |
| Plug Type |
5-15P |
| Input Voltage (Nominal) |
120V, 240V |
| Rated Output at Duty Cycle (TIG) |
100 A @ 100%, 100 A @ 30%, 145 A @ 30%, 75 A @ 100% |
| Input Frequency |
50/60 Hz |
| For Material Type |
Steel |
| Stick Welding Maximum Output Current |
155 A |
| Open Circuit Voltage |
75V |
| For Maximum Material Thickness |
3/8 in (Aluminum), 3/8 in (Steel) |
| Max. Amperage Range (TIG) |
150 A - 300 A |
| TIG Welding Output @ Duty Cycle |
100 A @ 24 V, 100% (230 V), 100 A @ 24 V, 30% (120 V), 145 A @ 25.8 V, 30% (230 V), 75 A @ 23 V, 100% (120 V) |
| TIG Welding Minimum Output Current |
5 A |
| Remote Control |
Remote Control Not Included |
| Power Cord Included |
Yes |
| Amperage Range |
5 to 155 A |
| TIG Arc Start Feature |
Lift Arc Start |
| For Minimum Material Thickness |
0.004 in (Steel), 0.012 in (Aluminum) |
| Stick Welding Minimum Output Current |
5 A |
| Model |
K2606-1 |
| Process |
Stick Welding (SMAW), TIG Welding (GTAW) |
| brand-mfr model |
LINCOLN ELECTRIC - K2606-1 |
| Process (Merch) |
GTAW, SMAW |
| Welder Type (Merch) |
Stick/TIG Package |
| Package Quantity |
1 |
