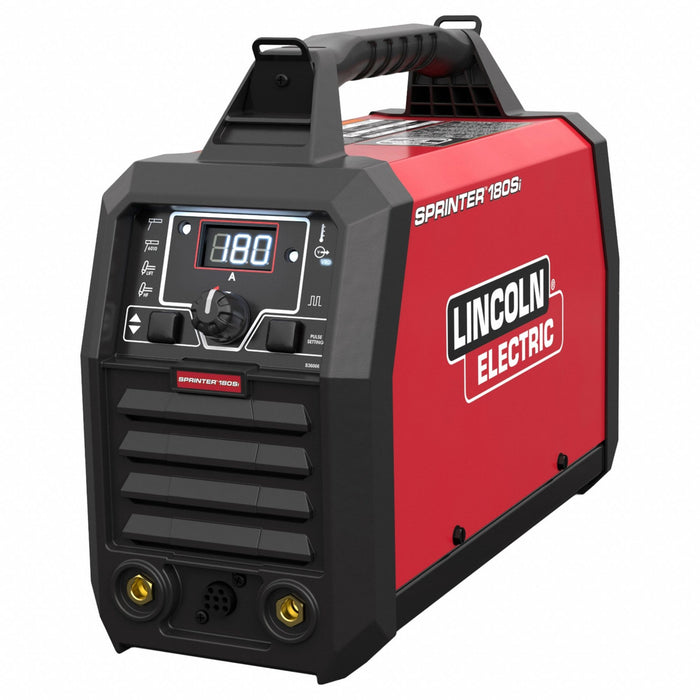

Lincoln Electric Sprinter 180Si stick welder

Lincoln Electric K5453-1 Sprinter 180Si Stick/TIG Welder, 120V AC, DC, 20 to 180 A

UPC: 015082700861 | Harmonization / Schedule B : 8515.39.0040

Country of Origin: Mexico | Shipping Weight: 30.55 lbs

$1,621.60 - $1,621.60
$1,621.60
$1,621.60 - $1,621.60
$1,621.60

Stick Welder, Electrode Cable Length 12 1/2 ft, For Material Type Stainless Steel, Input Frequency 60 Hz, Input Voltage 120V AC, Phase Single, Polarity DC, Model Sprinter 180Si, Stick Welding Maximum Output Current 180 A, 85 A, TIG Welding Maximum Output Current 110 A, Cable Connection Type Dinse-Style, Remote Connection Type 8-Pin (Lincoln), Stick Welding Output @ Duty Cycle 180 A @ 25 Percent, 85 A @ 40 Percent, TIG Welding Output @ Duty Cycle 109 A @ 40 Percent

Series Sprinter 180Si
Standards IP21S
Includes 230V to 120V Power Cord Adapter, Heavy Duty Work Clamp and Cable, Insulated Electrode Holder and Cable
Input Voltage 120V AC
Features Heavy Duty Work Clamp and Cable, Insulated Electrode Holder and Cable, Sprinter 180Si Welder
Phase Single
Welding Processes Stick Welding (SMAW), TIG Welding (GTAW)
Polarity DC
Application Aerospace, Auto Body, Farm, Light Duty Fabrication, Light Structural, Maintenance, Ship Building
Plug Type 5-15P, 6-50P
TIG Welding Output @ Duty Cycle 109 A @ 40%
TIG Welding Minimum Output Current 10 A
Welding Mode CC
Effective Input Current 20 A @ 120V AC
Color Black/Red
Weight 20 lb
For Material Type Stainless Steel
Stick Welding Maximum Output Current 180 A, 85 A
Stick Welding Minimum Output Current 20 A
Remote Connection Type 8-Pin (Lincoln)
TIG Welding Maximum Output Current 110 A
Model Sprinter 180Si
Stick Welding Output @ Duty Cycle 180 A @ 25%, 85 A @ 40%
Open Circuit Voltage 14 V, 65 V, 110 V
Input Frequency 60 Hz
Power Cord Included Yes
TIG Arc Start Feature High Frequency
Cable Connection Type Dinse-Style
Process Stick Welding (SMAW), TIG Welding (GTAW)
Rated Output @ Duty Cycle (TIG) 109 A @ 40%
Welding Power Source Type CC
Amperage TIG - Minimum 10 A
Rated Output @ Duty Cycle (Stick) 180 A @ 25%, 85 A @ 40%
Amperage Stick - Maximum 180 A
Amperage Stick - Minimum 20 A
Electrode Cable 12 1/2 ft
Amperage TIG - Maximum 110 A
Country of Origin Mexico
