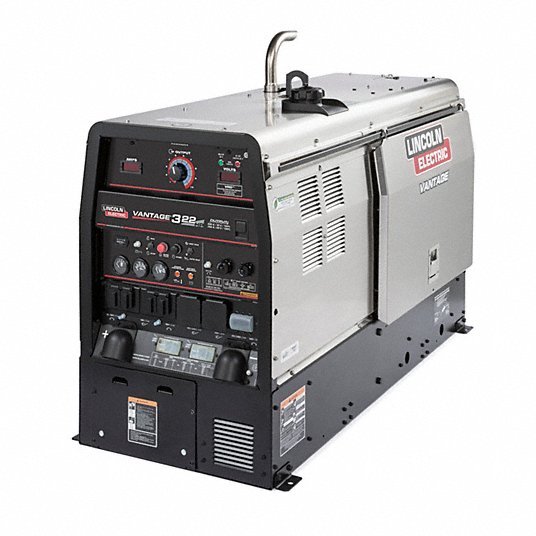

Lincoln K2409-5 Engine-Driven Welder, Vantage 322 Series, Electric Start, 12,500 W Peak - KVM Tools Inc.KV61UX76

Lincoln K2409-5 Engine-Driven Welder, Vantage 322 Series, Electric Start, 12,500 W Peak

UPC: 015082852973 | Harmonization / Schedule B : 8502.11.0000

Country of Origin: United States | Shipping Weight: 1035 lbs

$35,168.95 - $35,168.95
$35,168.95
$35,168.95 - $35,168.95
$35,168.95
Engine-Driven Welder, Color Stainless Steel, Generator Fuel Type Diesel, Phase Single-/Three-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 300 A, Stick Welding Minimum Output Current 10 A, Stick Welding Output @ Duty Cycle 280 A @ 32 V, 100 Percent, TIG Welding Maximum Output Current 300 A, TIG Welding Minimum Output Current 10 A, TIG Welding Output @ Duty Cycle 280 A @ 32 V, 100 Percent, Remote Connection Type 14-Pin (Lincoln), 6-Pin (Lincoln), Welding Mode CC/CV

Item Engine-Driven Welder
Series Vantage 322
Start Type Electric
Continuous Auxiliary Power 11,000 W
Peak Auxiliary Power 12,500 W
Engine Brand Kubota
Model K2409-5
Horsepower 22 hp
Generator Fuel Type Diesel
Engine Model Kubota V1505
Oil Capacity 6 3/8 qt
Stick Welding Maximum Output Current 300 A
Stick Welding Output @ Duty Cycle 280 A @ 32 V, 100%
Stick Welding Minimum Output Current 10 A
Remote Connection Type 14-Pin (Lincoln), 6-Pin (Lincoln)
TIG Welding Output @ Duty Cycle 280 A @ 32 V, 100%
Weight 1,035 lb
Open Circuit Voltage 60 V DC
Circuit Breaker Yes
TIG Arc Start Feature Lift Arc Start
TIG Welding Minimum Output Current 10 A
Welding Processes Air Carbon Arc Cutting & Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Generator Outlets 14-50R 120/240V Receptacle, 15-50R 240V Receptacle, 5-20R 120V GFCI Receptacle (2), 5-20R 120V Receptacle (4)
TIG Welding Maximum Output Current 300 A
Color Stainless Steel
Polarity DC
Phase Single-/Three-Phase
Fuel Tank Capacity 20 gal
Welding Mode CC/CV
Rated Output at Duty Cycle (Stick) 280 A @ 100%
Fuel Tank Capacity Range 10 gal - 20 gal
Max. Amperage Range (Stick) 150 A - 300 A
Welder Type Base Model
Horsepower Range 15 hp - 30 hp
Generator Outlet Type 14-50R, 15-50R, 5-20R
Welder Model Type Base Model
Process (Merch) SMAW, GTAW, GMAW, FCAW, CAC-A
Process Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
brand-mfr model LINCOLN ELECTRIC - K2409-5
Package Quantity 1
