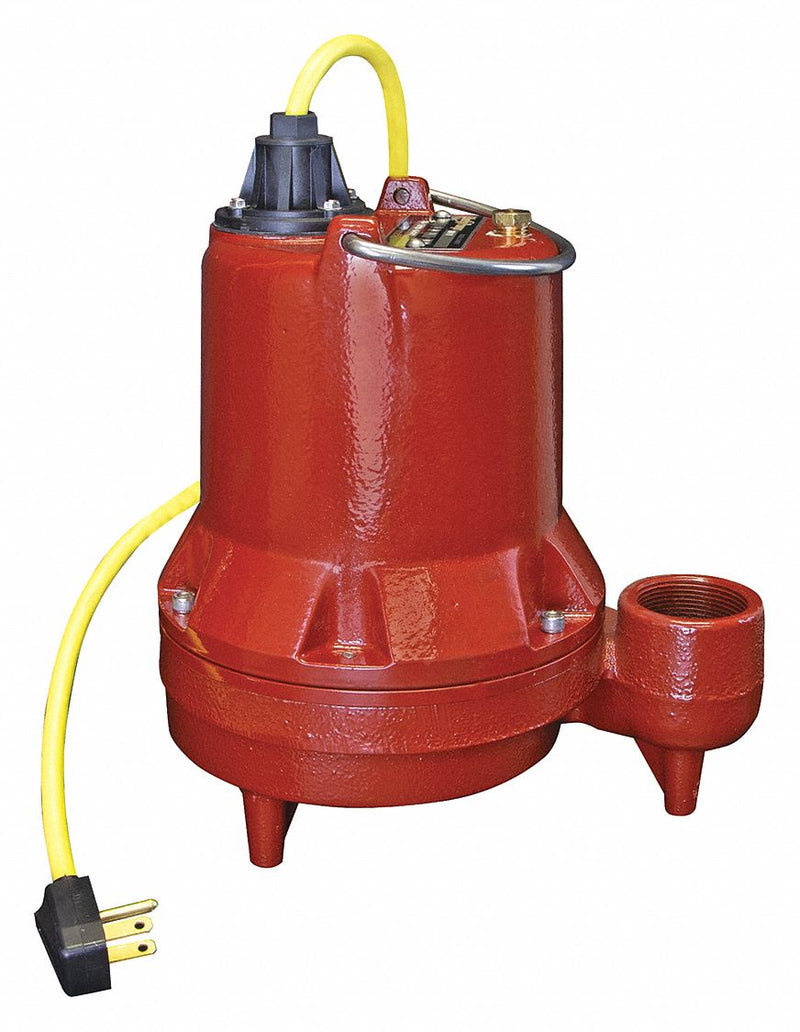

Liberty Pumps HT41M Submersible Sump Pump, 2/5 hp, 115V AC, 65 gpm Flow Rate @ 10' of Head, 1 1/2 in FNPT

Liberty Pumps HT41M Submersible Sump Pump, 2/5 hp, 115V AC, 65 gpm Flow Rate @ 10' of Head, 1 1/2 in FNPT

UPC: 671812103526 | Harmonization / Schedule B : 8413.70.2004

Country of Origin: United States | Shipping Weight: 36.7 lbs

$541.18 - $541.18
$541.18
$541.18 - $541.18
$541.18

Submersible Sump Pump, HP 4/10, Phase - Pumps 1, Rated Voltage 115V AC, Hz 60 Hz, Amps 12 A, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, Body Material Cast Iron, Impeller Material Engineered Polymer, Shaft Seal Material - Pumps Carbon, Ceramic, Flow Rate @ 5 Ft. of Head 59.0 gpm, Flow Rate @ 10 Ft. of Head 51 gpm, Flow Rate @ 15 Ft. of Head 31.0 gpm, Max. Head 20 ft, Min. Sump Pit Dia. 14 in, Minimum Water Depth 14 in, Overall Height 11 1/2 in

Cord Length 10 ft
Max. Diameter Solids 3/4 in
Cord Length - Pumps 10 ft.
Min. Sump Pit Dia. 14 in
Width 7-3/4"
Length 9"
Height 11-13/32"
Manufacturers Warranty Length 3 yr
Discharge Dia. 1 1/2 in
Width at Widest Point 7 3/4 in
Overall Height 11 1/2 in
Minimum Water Depth 14 in
Body Diameter 9 in
Discharge Diameter 1 1/2 in
Solids Diameter - Maximum 3/4 in
Sump Pit Diameter - Minimum 14 in
Discharge NPT 1-1/2" F
HP 4/10
Hz 60 Hz
Impeller Material Engineered Polymer
Max. Head 20 ft
Motor RPM 1550
Motor Type Shaded pole
Voltage 115V
Phase Single
High Temp. Rated Thermal Overload Yes
Pump Body Material Cast Iron
Max. Head - Pumps 20 ft.
Gauge/Conductor 16/3
Base Material Cast Iron
NEC Cord Designation SJEOOW
Mechanical Seal Buna-N, CRB/CMC, Stainless Steel
Input Phase AC 1
Amps - Pumps 12.00
Thermal Protection Yes
Pump RPM 1550
High Temp. Rated Impeller Yes
Handle Yes
Voltage - Pumps 115VAC
Duty Continuous
Max. Liquid Temp. 200 Degrees F
High Temp. Rated Power Cord Yes
Bearing Type Ball
GPM of Water @ 5 Ft. of Head 58
Item - Sump Pumps High-Temperature Submersible Sump Pump
Shaft Seal Material - Pumps Carbon, Ceramic
Pump HP 4/10
High Temp. Rated Switch No
Impeller Material - Pumps Engineered Polymer
GPM of Water @ 10 Ft. of Head 51
Alarm Included No
Outlet 1-1/2" FNPT
GPM of Water @ 15 Ft. of Head 31
Switch Type - Pumps Manual
Amps 12 A
Application Dewatering
Flow Rate @ 15 Ft. of Head 31.0 gpm
Switch Actuation No Switch Included
Discharge Standard NPT
Flow Rate @ 10 Ft. of Head 51 gpm
Duty Cycle Continuous
Rated Voltage 115V AC
Phase - Pumps 1
Switch Electrical Connection No Switch Included
Discharge Gender Female
Discharge 1-1/2 in FNPT
Flow Rate @ 5 Ft. of Head 59.0 gpm
RPM 1,550 RPM
Body Material Cast Iron
Current 13 A
Shaft Seal Material Carbon/Ceramic
Hazardous Location Class Not Rated
Impeller Design Vortex
Installation Submersible
Flow Rate @ 10 ft of Head 65 gpm
Motor Housing Material Cast Iron
For Industry Residential
Horsepower 2/5 hp
Flow Rate @ 30 ft of Head 0 gpm
Liquid Temperature - Maximum 200 Degrees F
Feet of Head - Maximum 19 ft
Frequency 60 Hz
For Media Type Clear Water
Includes Alarm No Alarm Included
Series HT40-Series
Rotation Speed - Maximum 1,550 RPM
Operation Manual
Power Source Corded Electric
Country of Origin United States
