Leviton CR20-W Receptacle, White, 20 A, 2P3W, Side, 1PK - KVM Tools Inc.KV792U99

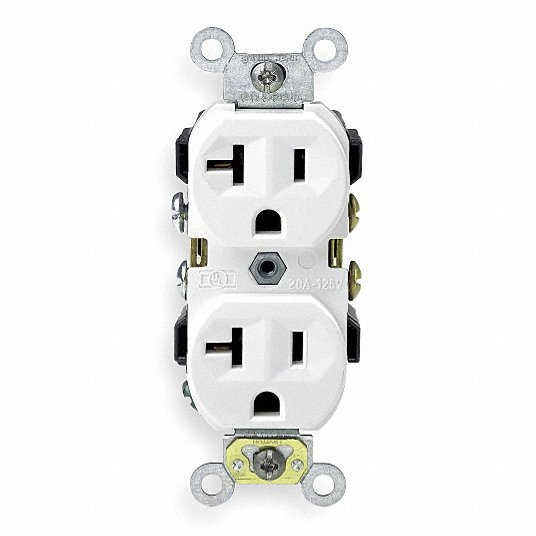

Leviton CR20-W Receptacle, White, 20 A, 2P3W, Side, 1PK

UPC: | Harmonization / Schedule B :

Country of Origin: United States | Shipping Weight: 0.14 lbs

$6.54 - $6.54
$6.54
$6.54 - $6.54
$6.54

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable

Outlet Type - Plugs and Receptacles Duplex
Application Environment Commercial
Amps - Plugs and Receptacles 20 A
Voltage - Plugs and Receptacles 125VAC
NEMA Receptacle Configuration - Plugs and Receptacles 5-20R
Wiring Method Side
Sub-Category Duplex Receptacles
Includes Strap Material
HP 1 hp
Number of Wires 3
Wiring Method - Plugs and Receptacles Side
Item Receptacle
Standards ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-1 and WD-6, UL 498 File E13399
NEMA Configuration 5-20
Material Thermoplastic (Body and Face)
Color - Plugs and Receptacles White
Phase Single
Number of Poles 2
Special Features Indented Face
Minimum Operating Temperature -40 Degrees C
Additional Electrical Protections Standard Protection
Key Resistance Properties Standard Resistance
Horsepower Rating 1 hp
Contact Material Brass
Housing Material Thermoplastic
Grounding Grounded
Housing Color White
Current Rating 20 A
Voltage Rating 125V AC
Resistance Properties Not Applicable
Mount Type Flush
Number of Poles & Wires 2 Pole / 3 Wire
Maximum Operating Temperature 60 Degrees C
NEMA Enclosure Rating Not Rated
Grade Federal Specification
Number of Outlets 2
Additional Electrical Protection Standard Protection
Connection Orientation Straight
Wire Connection Type Screw Terminals
NEMA Receptacle Configuration 5-20R
Receptacle Type Duplex
Primary Resistance Properties 20 A
Hazardous Location Specification Not Applicable
Includes Mounting Hardware Yes
Market Commercial
Cover Type No Cover
Wire Connection Types Screw Terminals
Polarized Yes
GFCI No
Package Quantity 1
