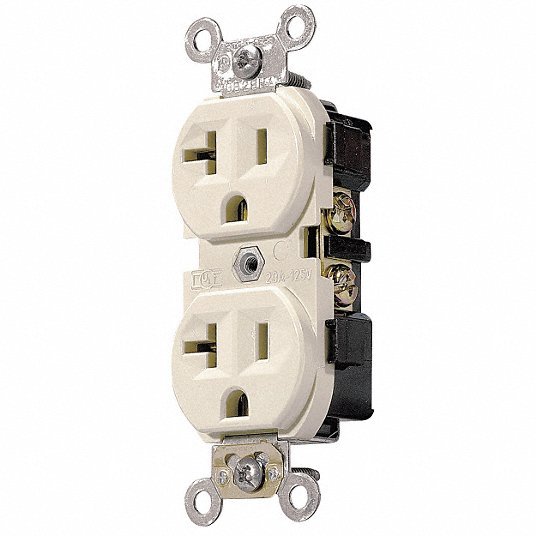

Leviton CR20-I Receptacle, Ivory, 20 A, 2P3W, Side, 1PK
UPC: | Harmonization (Schedule B): 8536.69.8000
SKU KV792U97
Original price
$4.55
-
Original price
$4.55
Original price
$4.55
$4.55
-
$4.55
Current price
$4.55
Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
| Outlet Type - Plugs and Receptacles | Duplex |
| Application Environment | Commercial |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125VAC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Number of Poles | 2 |
| NEMA Configuration | 5-20 |
| HP | 1 hp |
| Item | Receptacle |
| Color | Ivory |
| Special Features | Indented Face |
| Phase | Single |
| Sub-Category | Duplex Receptacles |
| Voltage | 125 VAC |
| Color - Plugs and Receptacles | Ivory |
| Wiring Method | Side |
| Includes | Strap Material |
| Number of Wires | 3 |
| Wiring Method - Plugs and Receptacles | Side |
| Standards | ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-1 and WD-6, UL 498 File E13399 |
| Material | Thermoplastic (Body and Face) |
| NEMA Enclosure Rating | Not Rated |
| Wire Connection Type | Screw Terminals |
| GFCI | No |
| Connection Orientation | Straight |
| Grounding | Grounded |
| Voltage Rating | 125V AC |
| Hazardous Location Specification | Not Applicable |
| Primary Resistance Properties | 20 A |
| Housing Color | Ivory |
| Number of Outlets | 2 |
| Horsepower Rating | 1 hp |
| Maximum Operating Temperature | 60 Degrees C |
| Mount Type | Flush |
| Minimum Operating Temperature | -40 Degrees C |
| Polarized | Yes |
| Additional Electrical Protection | Standard Protection |
| Market | Commercial |
| Housing Material | Thermoplastic |
| Grade | Federal Specification |
| Resistance Properties | Not Applicable |
| Number of Poles & Wires | 2 Pole / 3 Wire |
| Cover Type | No Cover |
| Includes Mounting Hardware | Yes |
| Additional Electrical Protections | Standard Protection |
| Contact Material | Brass |
| Wire Connection Types | Screw Terminals |
| Receptacle Type | Duplex |
| Current Rating | 20 A |
| UL 94 Flammability Rating | V-0 |
| NEMA Receptacle Configuration | 5-20R |
| Key Resistance Properties | Standard Resistance |
| Body Material | Thermoplastic |
| Terminal Accom. | 14-10 AWG |
| Amperage | 20 A |
| NEMA | WD-1 & WD-6 |
| Grounding Screw | Steel 8-32 |
| Termination | Side Wire |
| Line Contacts | Brass .031 Thick |
| At Rated Voltage | 1 HP |
| Strap Material | Zinc-Plated Steel |
| Current Limiting | Full Rated Current |
| Wire | 3 |
| ANSI | C-73 |
| CSA C22.2 No. 42 | File 152105 |
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
| Ground Clips | Brass |
| Terminal Screws | Steel 8-32 |
| Feature | Indented Face |
| Device Type | Duplex Receptacle Outlet |
| Pole | 2 |
| Operating Temperature | -40°C to 60°C |
| UL498 | File E13399 |
| Screw Terminal Torque | 14-18 in-lbs |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Face Material | Thermoplastic |
| Package Quantity | 1 |
