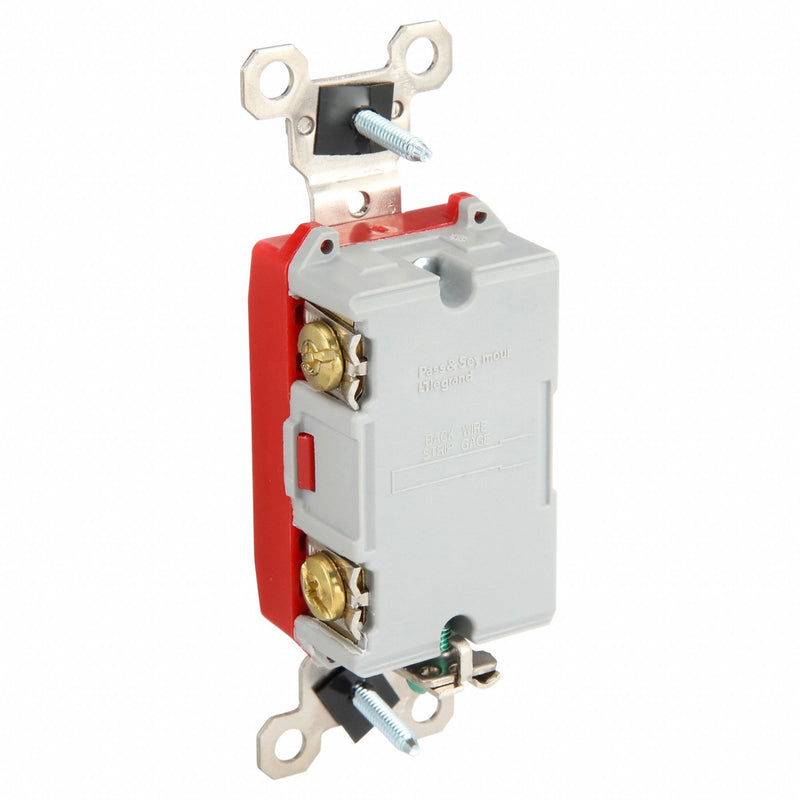

Legrand PS20AC1I Wall Switch, Toggle Switch, Single Pole, Maintained, Ivory, 120V AC, 20 A

Legrand PS20AC1I Wall Switch, Toggle Switch, Single Pole, Maintained, Ivory, 120V AC, 20 A

UPC: 785007196627 | Harmonization / Schedule B : 8536.50.9040

Country of Origin: Mexico | Shipping Weight: 0.17 lbs

$10.02 - $10.02
$10.02
$10.02 - $10.02
$10.02

Wall Switch, Color Ivory, Current Rating 20 A, Illuminated No, Pilot Light No, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120V AC, Wiring Method Back/Side, Horsepower Rating 1 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 3.3 in, Nightlight No, Number of Switches 1, Resistance Properties Chemical Resistant, Corrosion Resistant, Heat Resistant, Impact Resistant

Switch Type Single Pole
Switch Style Toggle
Amps AC 20 A
Color Ivory
Voltage AC 120 to 277
Locking No
Switch Function Maintained
Wiring Method Back/Side
Application Environment Industrial
Description/Special Features Nylon Toggle
Antimicrobial No
Voltage 120.0 V
Standards cULus Listed, UL 498/20, WD-1, WD-6
Switch Depth 1.1 in
Switch Material Thermoplastic
Voltage Rating 120V AC
Minimum Wire Size 14 AWG
Maximum Operating Temperature 115 Degrees C
Resistance Properties Chemical Resistant, Corrosion Resistant, Heat Resistant, Impact Resistant
Market Industrial
Housing Material Thermoplastic
Minimum Operating Temperature -40 Degrees F
Wire Connection Type Screw Terminals
Contact Material Silver Alloy
Horsepower Rating 1 hp
Maximum Wire Size 10 AWG
Grounding Grounded
Current Rating 20 A
Switch Height 2.2 in
Overall Width 1.3 in
Mount Hole Center-to-Center Height 3.3 in
Features Chemical Resistant
Strap Material Nickel-Plated Brass
Number Of Poles Single Pole
Contact Rating 20Amp, 120/277Vac
Standard UL 498/20
Special Features Back & side wire, locking support, heavy duty toggle
Action Single pole
Actuator Toggle
Application Sector Industrial
Amperage 20.0 A
Nightlight No
Number of Switches 1
IP Rating Not Applicable
NEMA Enclosure Rating Not Applicable
Locking Style Not Applicable
Illuminated No
Package Quantity 1
Country of Origin Mexico
