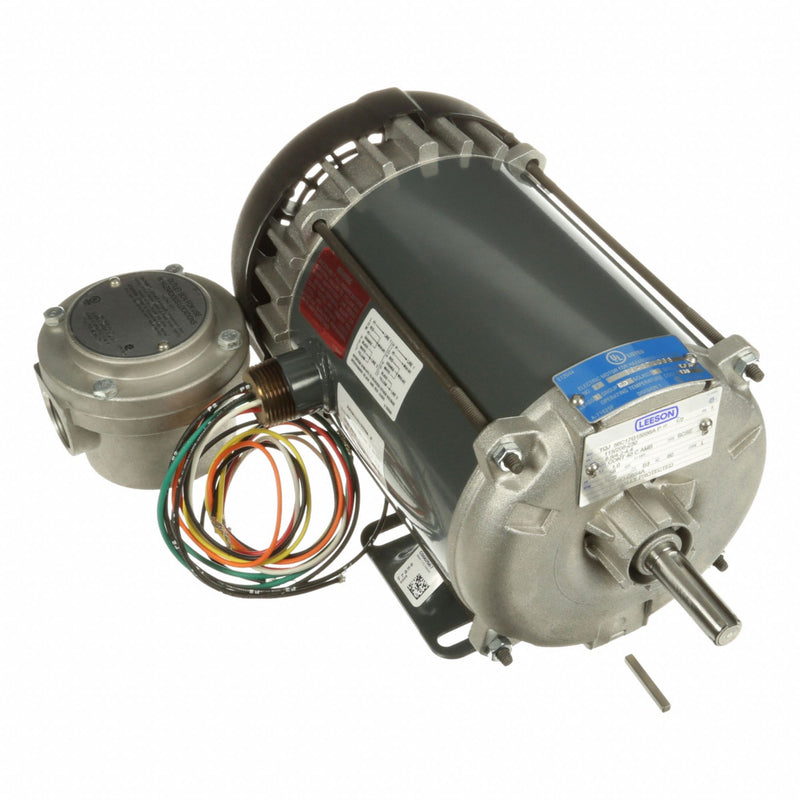

Leeson 056C17G15556 Hazardous Location Motor, 1/2 HP, 1725 RPM, 115/208-230V, Single Phase, Capacitor-Start, TEFC, Frame 56, Class I/II Div I

Leeson 056C17G15556 Hazardous Location Motor, 1/2 HP, 1725 RPM, 115/208-230V, Single Phase, Capacitor-Start, TEFC, Frame 56, Class I/II Div I

UPC: | Harmonization / Schedule B : 8501.40.4040

Country of Origin: United States | Shipping Weight: 29 lbs

$1,030.24 - $1,030.24
$1,030.24
$1,030.24 - $1,030.24
$1,030.24

Hazardous Location Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 8.8/4.2-4.4 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous

Motor Design Capacitor-Start
Phase Single
HP 1/2 hp
RPM Range 1,701-1,800
Voltage 115/208-230V AC
Frame 56
Hazardous Location Class Class I, Class II
Motor Thermal Protection Auto
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Mounting Type Rigid Base
Motor Service Factor 1
Duty Continuous
Standards CSA Certified, UL Listed
Hz 60 Hz
Motor Bearings Ball
Full Load Amps 8.8/4.2-4.4 A
No. of Speeds 1
Ins. Class B
Motor Shaft Design Keyed
Includes Explosion Proof Conduit Box
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Shaft Rotation CW/CCW
Temp. Code T3B
NEMA Design None
Max. Ambient Temp. 40 Degrees C
Motor Application Hazardous Location
Motor Frame Material Steel
Nominal Efficiency 66 %
Nameplate RPM 1,725 RPM
Usable @ 200V Not Usable at 200V
Usable @ 208V Usable at 208V
Motor Mounting Position Horizontal
Duty Cycle Continuous
Conduit Box Location Exterior
Hazardous Location Division Division I
Hazardous Location Group Group C, Group D, Group E, Group F, Group G
Country of Origin United States
