| Action Type |
Rotary |
| For Media Type |
Automatic Transmission Fluid, Bleach, Diesel Fuel, Ethanol, Kerosene, Water |
| Max. Flow Rate |
15 gal per 120 strokes |
| Max. Viscosity |
2,000 SUS |
| Wetted Materials |
Buna-N, Cast Iron, Steel |
| Max. Fluid Temp. |
140 Degrees F |
| Discharge Tube Outlet ID |
1 1/8 in |
| Includes |
Suction Tube and Curved Discharge Spout |
| Suction Tube OD |
1 1/4 in |
| Metered |
No |
| Discharge Tube Outlet OD |
1 1/4 in |
| Includes Suction Tube |
Yes |
| Max. Temp. |
140 Degrees F |
| Discharge Tubing Material |
Steel |
| Max. Flow GPM |
15 gpm |

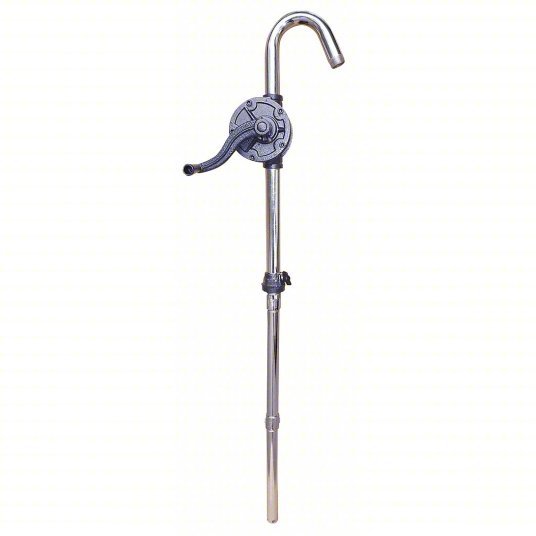

| Item |
Hand Operated Drum Pump |
| RPM |
135 |
| For Use With |
Antifreeze, Fuel Oils, Lubricating Oils |
| Suction Tube Type |
3-Piece Tube |
| Self-Priming |
Yes |
| Adapter Material |
Cast Iron |
| Ounces per Stroke |
15 GPM @ 135 RPM |
| Seal Material |
Buna-N |
| Type |
Rotary Action |
| Adapter Type |
2" Bung |
| Max. Liquid Temp. |
140 Degrees F |
| Housing Material |
Cast iron |
| Pump Body Material |
Cast Iron |
| Application |
Lubricating Oils, Fuel Oils, Antifreeze |
| GPM |
15 GPM @ 135 RPM |
| For Container Type |
Bucket, Drum, Pail |
| Not Recommended Chemicals |
DEF, Fresh Water, Salt Water |
| Compatible Chemicals |
Automatic Transmission Fluid, Deionized Water, Diesel Fuel, Ethyl (Ethanol), Kerosene, Sodium Hypochlorite/Bleach (to 20%) |
| Includes Discharge Hose |
No |
| Includes Nozzle |
No |
| Includes Bung Adapter |
Yes |
| Power Source |
Hand Operated |
| Includes Spout |
Yes |
| Housing Material - Pumps |
Cast Iron |
| Gear Lube |
NT |
| Grease |
NT |
