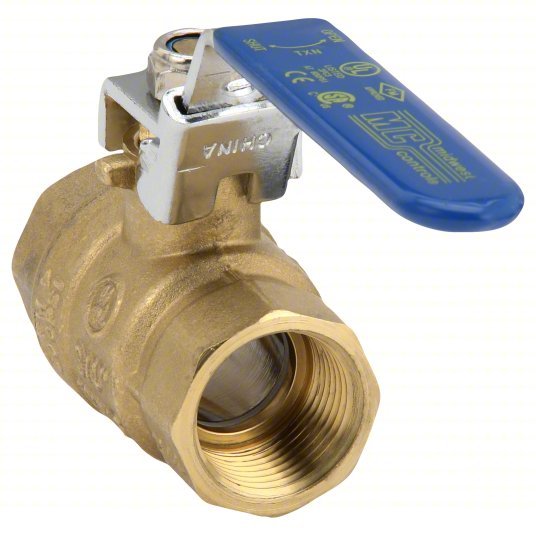

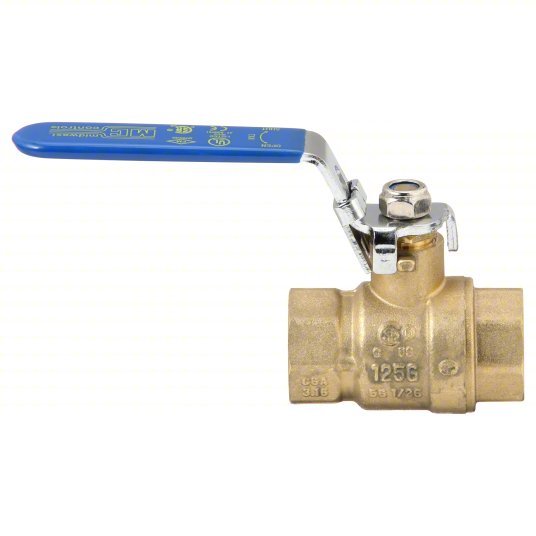

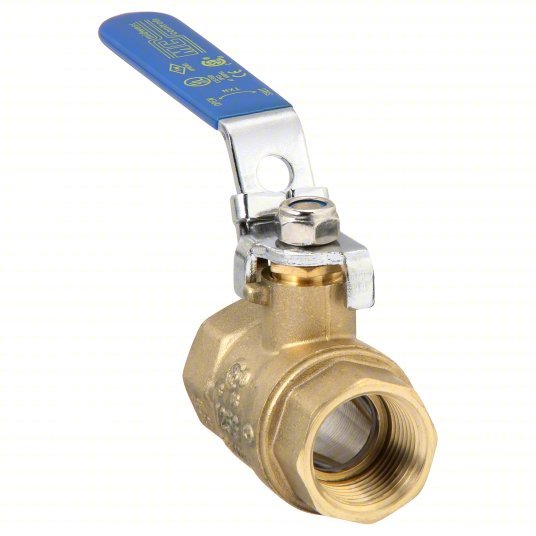

KVM Tools KV32H972 Manual Two-Way Ball Valve 3/4 in, Straight, FNPT x FNPT, Full Port Ball Port, Lever

Manual Two-Way Ball Valve, Body Material Brass, For Media Air, Oil, Steam, Water, Valve Construction Two-Piece, Nominal Valve Size 3/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Applicable, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Locking

Body Style	Inline
Stem Material	brass
Port	Full
Max. Pressure	600 psi CWP
Connection Type	FNPT x FNPT
Item	Ball Valve
Ball Valve Product Group	Manual
Seat Material	PTFE
Temp. Range	0 Degrees to 400 Degrees F
Standards	UL ,CSA ,FM NSF-61, MSS-SP110
Stem Type	Blowout Proof
Body Seal Material	PTFE
Ball Material	Brass
Valve Structure	2-Piece
Ball Valve Basic Body Material	Brass
Max. Steam Pressure	150 psi WSP
Handle Material	Steel
Handle Type	Locking Lever
Seal Material	PTFE
Connection	FNPT
Type	Two Piece
Material of Construction	Brass
Sub-Category	Brass Ball Valves
Handle - Locking	Locking
Cleaned and Bagged	Not Cleaned and Bagged
Vented Ball Valve	Non-Vented
Valve Body Style	Straight
For Media	Air, Oil, Steam, Water
Connection Type - Side 1	NPT
3-A Standard Compliance	Not Rated
Maximum Pressure - Steam	150 psi
Vacuum Service Rating	29 in Hg
Valve Construction	Two-Piece
Valve Ways	2-Way
Connection Gender - Side 1	Female
Manufacturer Warranty	3 yr
Ball Port Style	Full Port
Color - Valve Handle	Blue
Connection Gender - Side 2	Female
Maximum Pressure - Operating	600 psi
Coefficient of Volume (Cv)	29.76
Operating Temperature - Minimum	-20 Degrees F
Color - Valve Body	Brass
Connection Type - Side 2	NPT
Operating Temperature - Maximum	400 Degrees F
