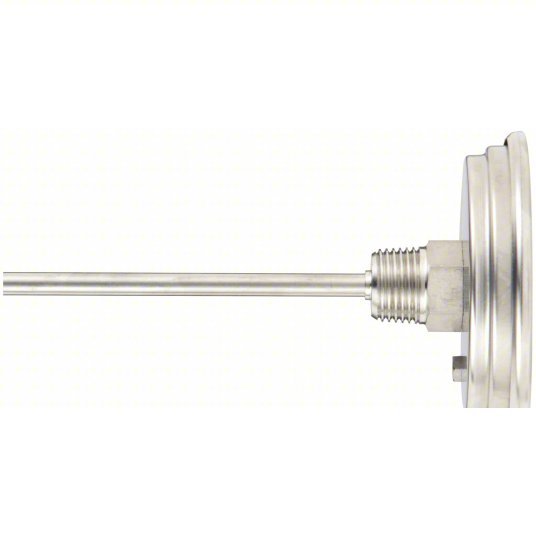

KVM Tools KV1NFY4 Dial Thermometer Back, 0° to 250°F/-20° to 120°C, 1/2 in NPT, 2.5 in Stem Lg, 3 in Dial Dia, 3 yr

UPC: 190735402818 | Harmonization (Schedule B): 9025.19.8085

Original price $61.20 - Original price $61.20
Original price
$61.20 - $61.20
Current price $61.20
Dial Thermometer, Temperature Range 0 Degrees to 250 Degrees F/-20 Degrees to 120 Degrees C, Stem Length 2.5 in, Dial Diameter 3 in, 1/2 in NPT, Back, Includes NIST-Traceable Certificate No, Housing Material 304 Stainless Steel, Lens Material Glass
Sensing Element Bimetal
Connection Location Back
Temp. Range (F) 0 Degrees to 250 Degrees
Coil Finish Silicone for Superior Time Response and Vibration Dampening
Adjustments External
Case Material Stainless Steel
Accuracy 41 Degrees to 200 Degrees F: +/-1%, Greater than 201 Degrees F: +/-1.5%, Less Than or Equal To 40 Degrees F: +/-1.5%
Stem Material 304 Stainless Steel
Case Hermetically Sealed
Window Material Glass
Thread Type NPT
Scale Celsius, Fahrenheit
Case Features Hermetically Sealed
Construction 304 Stainless Steel Housing and Stem with Glass Lens
Lens Material Glass
Glow-in-the-Dark No
Temperature Range 0 Degrees to 250 Degrees F/-20 Degrees to 120 Degrees C
Minimum Temperature C -20 Degrees C
Scale Type Dial
Lead Free No
Thread Gender Male
Maximum Temperature F 250 Degrees F
Minimum Temperature F 0 Degrees F
Maximum Operating Pressure Not Rated
Shatterproof No
Thermometer Type Industrial Dial Thermometer
Corrosion Resistant No
Process Connection 1/2 in NPT
Application General Purpose Industrial
Functions Manual Calibration
Housing Material 304 Stainless Steel
Long Reach No
Graduations 2 Degrees F/1 Degrees C
Vibration Resistant No
Includes NIST-Traceable Certificate No
Maximum Temperature C 120 Degrees C
Minimum Temperature °F 0 Degrees F
Minimum Temperature °C -20 Degrees C
Maximum Temperature °F 250 Degrees F
Maximum Temperature °C 120 Degrees C
