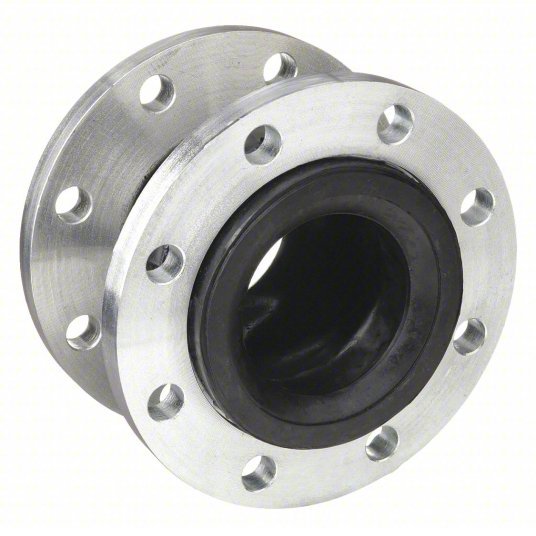

KVM Tools AMSE206 Expansion Joint 6 in Pipe Size, Flanged, Zinc-Plated Steel, EPDM Joint, 11 in Flange Dia

Expansion Joint, Bolt Circle Diameter 9 1/2 in, Bolt Hole Size 3/4 In.-10, Bolt Hole Threading Threaded, Burst Pressure 853 psi, Compression Distance 5/8 in, Connection Type Flanged, Expansion Distance 3/8 in, Expansion Joint Type Single Bulb, Features Absorbs Pipe Movement and Stress, Flange Diameter 11 in, Flange Material Steel, Flange Material Finish Zinc-Plated, For Fluid Type Air, Water, Joint Material EPDM, Joint Material Finish Not Applicable, Joint Material Grade Not Applicable

Material	EPDM
Vacuum	26 In Hg At 72 Deg F
Temp. Range	-50 To 230 Deg F
UPC	818272979692
Connection	Drilled
Bolt Holes	8
Max. Pressure	225 psi @ 72 Degrees F
Pipe Fitting Material	EPDM
Features	Absorbs Pipe Movement and Stress
Connection Type	Flanged
For Fluid Type	Air, Water
Joint Material	EPDM
Connection Material	Zinc-Plated Steel
Maximum Operating Temperature	230 Degrees F
Flange Material	Steel
Offset Distance	1/2 in
For Environment	HVAC, Industrial Piping, Marine Service, Petrochemical, Pollution Control, Power Generating, Pulp and Paper, Water and Wastewater
Minimum Operating Temperature	-50 Degrees F
Bolt Hole Threading	Threaded
Maximum Operating Pressure	225 psi
Maximum Off-Center Angle	15 Degrees
Expansion Joint Material	EPDM
Reinforcement Material	Synthetic Fiber
Maximum Vacuum Pressure	26 in Hg @ 72F
Expansion Distance	3/8 in
For Use On	Pipe
Application	Gases, General Purpose
Compression Distance	5/8 in
Burst Pressure	853 psi
Resistance Properties	Corrosion Resistant
Flange Material Finish	Zinc-Plated
Number of Bolt Holes	8
Expansion Joint Type	Single Bulb
