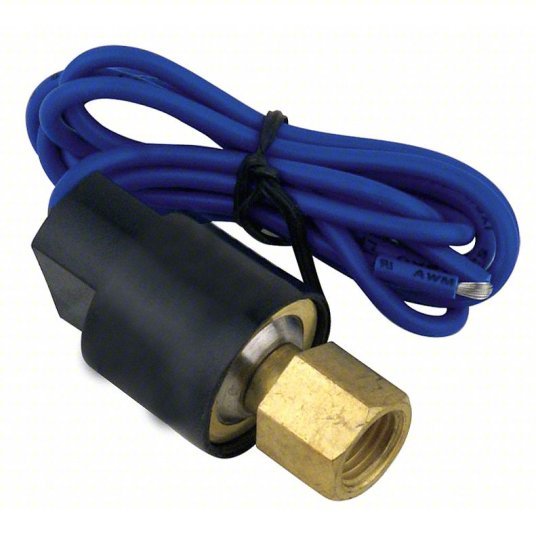

KVM Tools KV6ALA5 Press Switch,Open On Fall 25 PSI
UPC: 190735539033 | Harmonization (Schedule B): 8536.50.9065
SKU KV6ALA5
Original price
$7.68
-
Original price
$7.68
Original price
$7.68
$7.68
-
$7.68
Current price
$7.68
Pressure Switch, Product Type Low Pressure Control, Pressure Range - Maximum 150 psi, Pressure Differential - Minimum Not Applicable, Pressure Range - Minimum Not Applicable, Pressure Differential Max. Not Applicable, Pressure Differential Adjustability Fixed, Pressure Connection Gender Female, Pressure Connection Type Flare, Time Delay Setting Not Applicable, Pressure Setting Low, Pressure Connection Size 1/4 in, Rated Voltage 120/240V AC, 24V DC, Contact Form SPST, Switch Action Open on Fall
Switch Type | SPST |
Switch Action | Open on Fall |
Pressure Connection | 1/4 in Female SAE |
Type | Low |
Range (PSI) | 0.3-150 |
Close (PSI) | 80 |
Application | For Refrigerants R 12, R 22, R 134A and R 502, In Commercial Refrigeration |
Mounting | Universal |
Differential Pressure (PSI) | 25 to 80 |
Reset | Auto |
Function | To Protect the Compressor Loss of Refrigerant in Commercial Refrigeration and Air Conditioning Systems |
Enclosure | NEMA 1 |
Open (PSI) | 25 psi |
Pressure Range - Maximum | 150 psi |
Pressure Setting | Low |
Minimum Operating Temperature | -4 Degrees F |
Rated Voltage | 120/240V AC, 24V DC |
Maximum Operating Temperature | 194 Degrees F |
Weight | 0.1 lb |
Body Material | Thermoplastic |
Pressure Connection Gender | Female |
Frequency | 50/60 Hz |
Control Type | Low Limit |
Standards | cURus Recognized |
Contact Form | SPST |
Pressure Differential Adjustability | Fixed |
Mounting Orientation | Any Position |
Body Color | Black |
Pressure Type | Differential |
IP Rating | Not Rated |
Reset Type | Automatic Reset |
Compatible Pressure Sensor | Universal |
Pressure Connection Material | Brass |
Product Type | Low Pressure Control |
Pressure Connection Type | Flare |
Electrical Connection Type | Hardwired |
