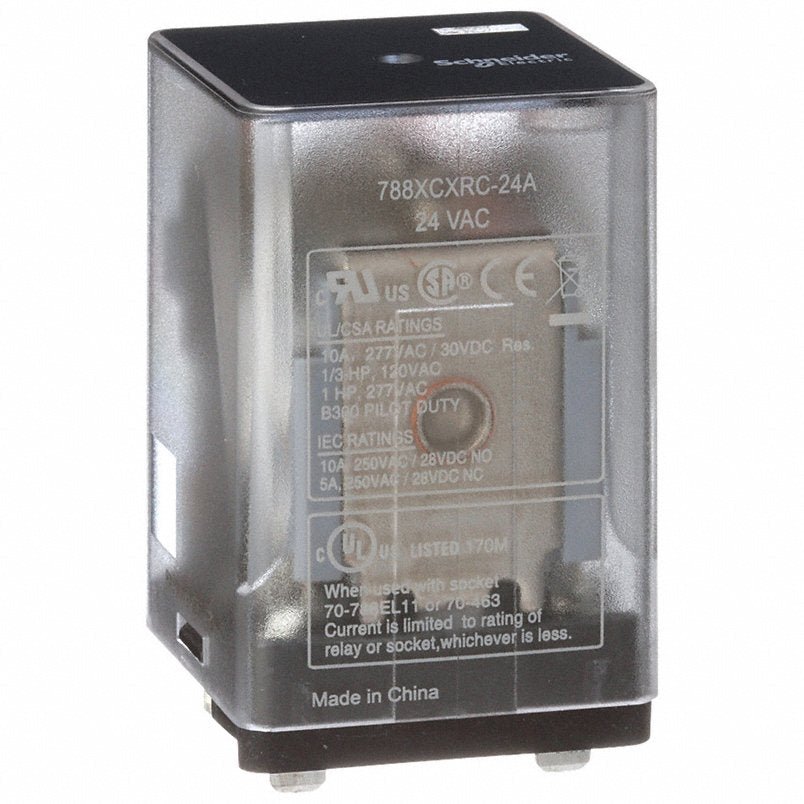

KVM Tools 5X840 General Purpose Relay, 24V AC Coil Volts, Square, 11 Pin, 3PDT

UPC: 190735355275 | Harmonization (Schedule B): 8536.41.0050

Original price $25.99 - Original price $25.99
Original price
$25.99 - $25.99
Current price $25.99

General Purpose Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form 3PDT, Current Rating 10 A, Flat Pin Width 0.189 in, Number of Pins 11, Pin Shape Flat, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method No Button, Contact Material Silver Alloy. Image may not represent actual item.

Item General Purpose Relay
Coil Volts 24V AC
AC Contact Rating - Relay 10A @ 277V
DC Contact Rating - Relay 10A @ 28V
Base Type - Plug In Relay Square
Number of Pins - Relay 11
Contact Form - Relay 3PDT
Mounting - Relay Plug In
Power Consumption - Relay 2 VA
HP @ 120V 1/3 hp
Contact Material Silver Alloy
Standards E40944
Status Indicator Mechanical Flag
Push To Test No
Socket 5X853
Socket Code C
HP @ 240V 1/2 hp
Contact Form 3PDT
Base Type Square
Pins 11
Contact Rating 10A @ 277VAC/30VDC
Contact Rating (AC) 10 A @ 277V
Socket Code Configurator Socket / Square / 11
Motor Rated Yes
Relay Mounting Style Socket
Power Consumption 2 VA
Horsepower @ 120V AC 1/3 hp
Coil Voltage Type AC
Coil Voltage 24V AC
Horsepower @ 240V AC 1/2 hp
Mounting Style Plug-In
Push-To-Test Method No Button
Series C Series
Push-To-Test Button No Test Button
Base Shape Square
Current Rating 10 A
Contact Rating (DC) 10 A @ 28V
Number of Pins 11
Combo Socket Code Socket / Square / 11
Package Quantity 1
