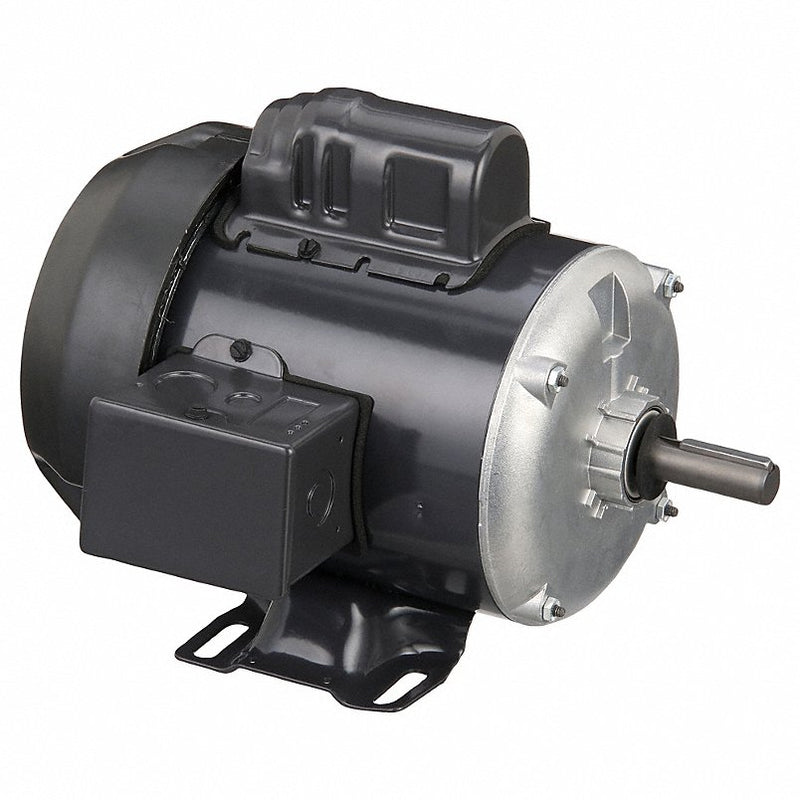

KVM Tools KV5K121 Capacitor-Start General Purpose Motor, 1/3 HP, 115/208-230V AC Voltage, 56 Frame

KVM Tools KV5K121 Capacitor-Start General Purpose Motor, 1/3 HP, 115/208-230V AC Voltage, 56 Frame

UPC: 190735344910 | Harmonization / Schedule B : 8501.40.4040

Country of Origin: China | Shipping Weight: 32 lbs

$398.86 - $398.86
$398.86
$398.86 - $398.86
$398.86

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 7.0/3.5-3.3, 56 Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Shaft Design Keyed

Item General Purpose Motor
Motor Enclosure Design Totally Enclosed Fan-Cooled
Motor Mounting Type Rigid Base
HP 1/3
Voltage 115/208-230V AC
Frame 56
Motor Thermal Protection Auto
Motor Service Factor 1.15
No. of Speeds 1
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application General Application
Nameplate RPM 1,725
Motor Frame Material Steel
Motor Mounting Position All Angle
Motor Shaft Design Keyed
Motor Shaft Rotation CW/CCW
Motor Design Capacitor-Start
Standards CSA Certified (258501), UL Recognized (E37403)
Max. Ambient Temp. 40 Degrees C
Hz 60
Motor Efficiency Group Standard Efficient
Full Load Amps 7.0/3.5-3.3
RPM Group 1701-1800
Duty Continuous
Includes Shaft Key
Motor Bearings Ball
Nominal Efficiency 56.2 %
Footnotes 51
Frame Material Steel
Phase Single
Ins. Class B
Duty Cycle Continuous
Package Quantity 1
