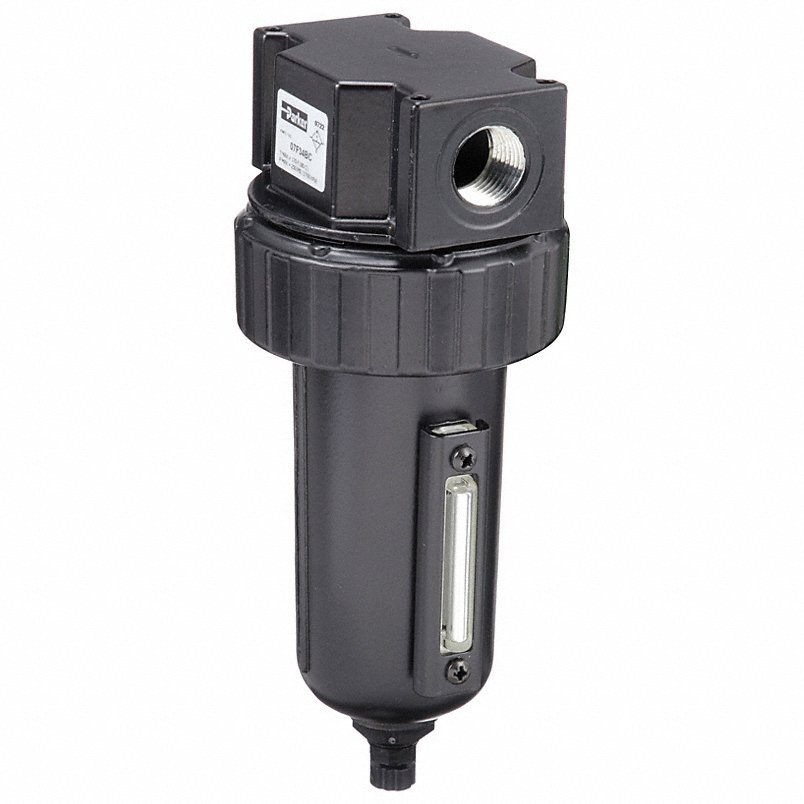

Compressed Air Filter, Filter Type Particulate, Air Inlet Size 3/8 in, Air Inlet Type NPT, Maximum Flow Rate 112 cfm, Maximum Operating Pressure 250 psi, Maximum Operating Temperature 175 Degrees F, Overall Width 3 1/8 in, Overall Height 7 15/16 in, Drain Included Yes, Filter Bowl Material Metal, Drain Type Manual, Series Standard Duty, Differential Pressure Indicator Included No, Air Flow Direction Left to Right, Air Inlet Gender Female, Air Outlet Gender Female, Air Outlet Size 3/8 in
Details
| For Removal Of | Particles, Water |
| Max. Temp. | 175 Degrees F |
| Housing Material | Aluminum |
| Drain Type | Manual |
| Max. Flow | 112 cfm |
| Bowl Material - Air Treatment | Metal with Sight Gauge |
| Filter Rating | 5 micron |
| Item | Compressed Air Filter |
| Max. Pressure | 250 psi |
| Filter Media | Compressed Air |
| Bowl Material | Metal with Sight Gauge |
| Filter Rating - Air Treatment | 5 micron |
| Max. Flow - Air Treatment | 112 cfm |
| Max. Incoming Pressure - Air Treatment | 250 psi |
| Item - Air Filters | General Purpose Filter |
| Includes | Bowl Guard |
| Weight | 0.75 kg |
| Maximum Flow Rate | 112 cfm |
| Minimum Operating Temperature | 5 Degrees C |
| Modular Connection | No Modular Connection |
| Seal Material | Rubber |
| Air Inlet Gender | Female |
| Filter Efficiency | 97 % |
| Series | Standard Duty |
| Filter Type | Particulate |
| Drain Included | Yes |
| Number of Air Inlets | 1 |
| Drain Part Compatibility | GGS_56605 |
| Filter Bowl Material | Metal |
| Filter Element Material | Compressed Air |
| Air Flow Direction | Left to Right |
| Body Material | Aluminum |
| Duty Rating | Intermediate Duty |
| Differential Pressure Indicator Included | No |
| For Substance Type | Air |
| Sight Gauge Included | No |
| For Fluid Type | Compressed Air |
| Filter Bowl Capacity | 7 oz |
| Maximum Operating Pressure | 250 psi |
| System Location | Main Line |
| Minimum Operating Pressure | 1.7 MPa |
| Filter Bowl Guard Included | Yes |
| Filter Bowl Guard Material | Aluminum |
| Maximum Operating Temperature | 175 Degrees F |
| Number of Air Outlets | 1 |
| Air Inlet Type | NPT |
| Air Outlet Gender | Female |
| Air Outlet Type | NPT |
| Filter Type (Broad from Filter Type) | Particulate |
| Filter Type (Broad from Filter Rating) | Particulate |
| Gauge Included | No |
| Package Quantity | 1 |
