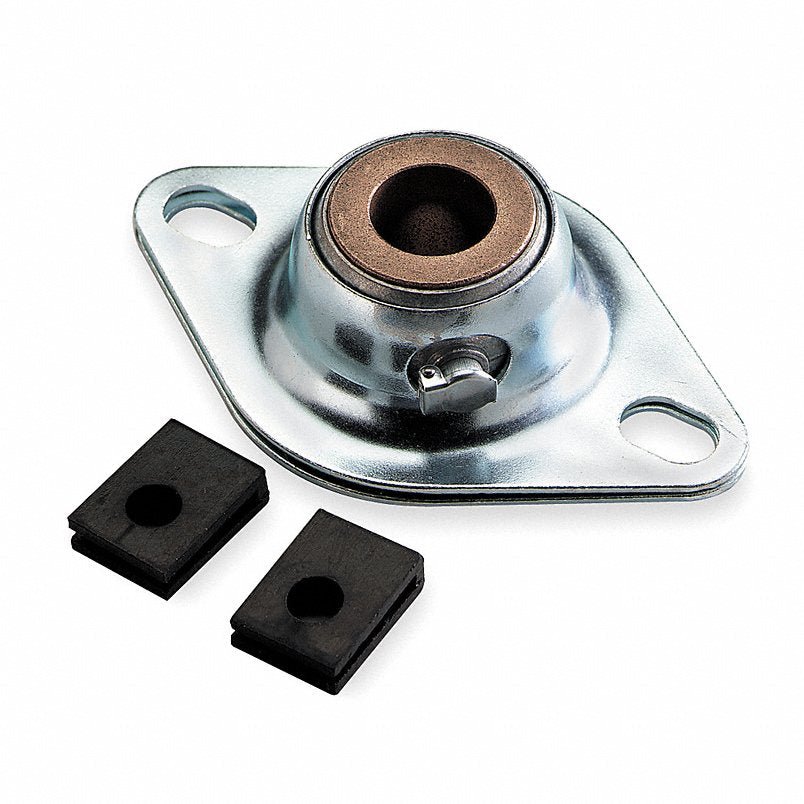

KVM Tools 4X815 Flange Bearing, 2-Bolt, Sleeve, 1/2" Bore
UPC: 044861006290 | Harmonization (Schedule B): 8482.10.5012
SKU KV4X815
Original price
$36.50
-
Original price
$36.50
Original price
$36.50
$36.50
-
$36.50
Current price
$36.50
2 Bolt Flange Bearing, Bearing Insert Material Bronze, Bearing Insert Type Plain Sleeve, Bore Diameter 1/2 in, Housing Material Steel, Housing Type Rhombus, Lubricant Material 20 Weight Non-Detergent Oil, Maximum Temperature 220 Degrees F, Minimum Temperature -5 Degrees F, Mount Hole Center-to-Center Height 3.375 in, Number of Mount Holes 2, Overall Height 1.125 in, Overall Length 4.375 in, Overall Width 2.75 in, Shaft Locking Type None, System of Measurement Inch
| Bearing Insert Type | Sleeve |
| Shaft Locking Type | None |
| Bearing Housing Material Type | Pressed Steel |
| Bearing Insert Material | Bronze |
| Bolt Hole Center-to-Center | 3 3/8 in |
| Series | F2PS-BR |
| Locking Type | None |
| Item | 2 Bolt Flange Bearing |
| Finish | Rustproof Plated |
| Bearing Lubrication | 20 Weight Non-Detergent Oil |
| Temp. Range | -5 Degrees to 220 Degrees F |
| Dynamic Load Capacity | Max. PV 50,000 lb |
| Includes | (2) Rubber Grommets, Spring-Lid Oil Cap |
| Housing Material | Pressed Steel |
| Maximum Temperature | 220 Degrees F |
| System of Measurement | Inch |
| Housing Type | Rhombus |
| Lubricant Material | 20 Weight Non-Detergent Oil |
| Temperature Range | -5 Degrees F to 220 Degrees F |
| Maximum PV | 50,000 lb/sq in-fpm |
| Housing Material Finish | Rustproof Plated |
| Includes Mounting Hardware | Yes |
| Features | Bearing Design Allows for a Vertical or Horizontal Mount as the Spring Lid Oil Cap is Positioned at 45 Degrees , Bearing Units Include Two Replaceable Rubber Grommets that Reduce Noise and Vibration, Porous Flanged Bronze Bearing is Press-Fit in the Sturdy Zinc Die-Cast Sphere with a Felt Strip for Lubrication, Two-Piece Pressed Steel Housing has a Rust-Proof Plated Finish |
| Flange Thickness | 0.125 in |
| Number of Mount Holes | 2 |
| Minimum Temperature | -5 Degrees F |
| Package Quantity | 1 |
