| Accuracy |
+/-3-2-3% |

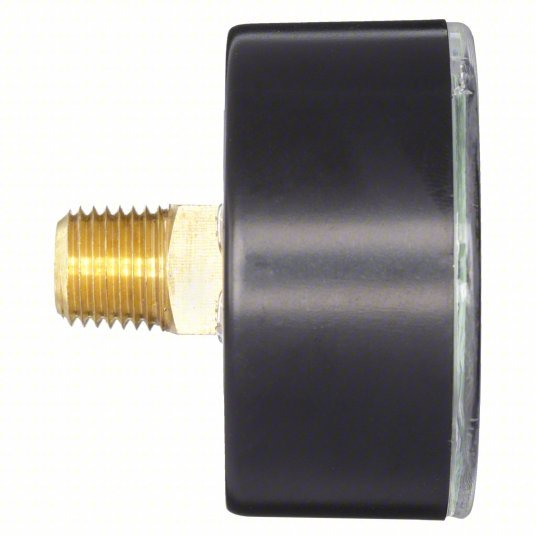

| Process Connection Location |
Center Back |
| Process Connection Type |
NPT |
| Application |
Test and Measurement |
| Gauge Case Material |
ABS Plastic |
| Lens Material |
Acrylic |
| Primary Pressure Range |
0 to 300 |
| Primary Scale Units |
psi |
| IP/NEMA Rating |
Not Rated |
| Liquid-Filled Case |
No |
| Hazardous Location Rating |
Not Rated |
| Panel-Mountable |
No |
| Blowout Safety Back |
No |
| Calibration Certificate Included |
No |
| Gauge Secondary Range Values |
0 to 2000 |
| Smallest Graduation |
5 psi |
| For Use With |
Air and Noncorrosive Fluids Such as Water and Oil in Pumps, Filters, Compressors, and Regulators |
| Gauge Application |
General-Purpose Case |
| Case Color |
Black |
| Gauge Primary Range Smallest Graduation |
5 |
| Socket Material |
Brass |
| Wetted Materials |
Brass / Bronze |
| Connection Type |
MNPT |
| Accuracy Scale |
Mid-Scale |
| Cleaned for Oxygen Service |
No |
| Scale Type |
Dual |
| Sensor Material |
Bronze |
| Ambient Operating Temperature Range |
-40 Degrees to 150 Degrees F |
| Secondary Scale Units |
kPa |
| Gauge Case Liquid |
None |
| Dial Color |
White |
| Vibration Resistance |
None |
| Includes Vent Plug |
No |
| Includes Mounting Hardware |
No |

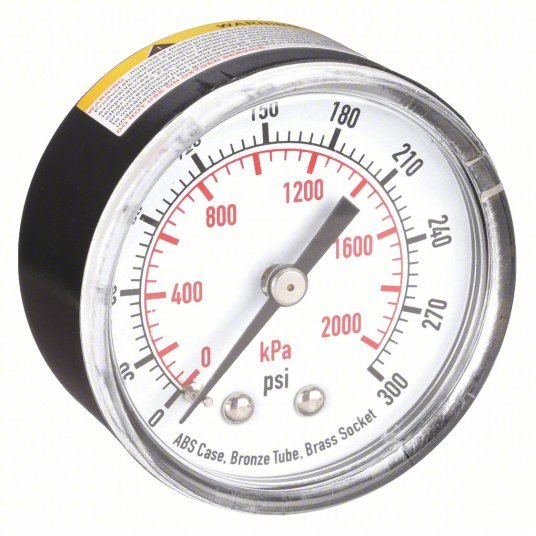

| Pressure Gauge Type |
General Purpose Dial Pressure Gauge |
| Removable Bezel |
No |
| Bezel Material |
Crimped Stainless Steel |
| Includes Calibration Certificate |
No |
| Process Connection Gender |
Male |
| Pressure Range Type |
Pressure |
| Primary Scale Minor Graduations |
5 |
| Dry Dampening Feature |
None |
| Non-Sparking |
No |
| Field Fillable |
No |
| Secondary Pressure Range |
0 to 2,000 |
| Freeze Resistant Movement |
No |
| Maximum Pressure |
300 |
| Operating Temperature Range |
-40 Degrees to 150 Degrees F |
