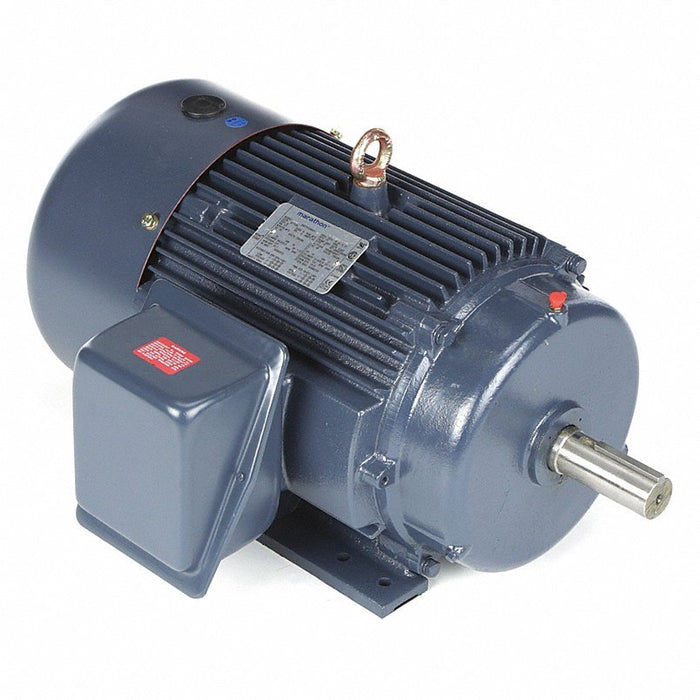

KVM Tools 48ZJ88 3-Phase General Purpose Motor, 1 1/2 HP, 56H Frame, 208-230/460V AC Voltage, 1,755 Nameplate RPM

UPC: 190735893111 | Harmonization (Schedule B): 8501.52.4000

Original price $422.99 - Original price $422.99
Original price
$422.99 - $422.99
Current price $422.99

General Purpose Motor, Three Phase, Motor Design 3-Phase, 1 1/2 HP, Nameplate RPM 1,755, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 4.3/2.1, 56H Frame, Hz 60/50, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Inverter Rated Yes, Motor Shaft Design Keyed. Image may not be represented as actual item.

Item General Purpose Motor
Motor Enclosure Design Totally Enclosed Fan-Cooled
Motor Mounting Type Rigid Base
HP 1 1/2
RPM Range 1,701-1,800
Voltage 208-230/460V AC
Frame 56H
Motor Thermal Protection None
Motor Service Factor 1.25
Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Application General Application
Motor Design 3-Phase
Nameplate RPM 1,755
Motor Shaft Rotation CW/CCW
Motor Mounting Position All Angle
Motor Frame Material Rolled Steel
Motor Shaft Design Keyed
Standards CSA Certified (258525), UL Recognized (E47479)
Includes Shaft Key
Hz 60/50
RPM Group 1701-1800
Motor Efficiency Group Premium Efficient
Full Load Amps 4.3/2.1
Max. Ambient Temp. 40 Degrees C
Inverter Rated Yes
Nominal Efficiency 86.5 %
Ins. Class F
No. of Speeds 1
Phase Three
Duty Continuous
CC Number CC030A
Motor Bearings Ball
Frame Material Rolled steel
Footnotes 3, 12, 51
Duty Cycle Continuous
Package Quantity 1
