CFM @ 0.100-In. SP |
71 |
Drive Type |
Direct |
Full Load Amps |
0.45 |
Housing Material |
Steel |
Includes |
Discharge Mounting Flange |
Number of Speeds |
1 |
Phase |
1 |

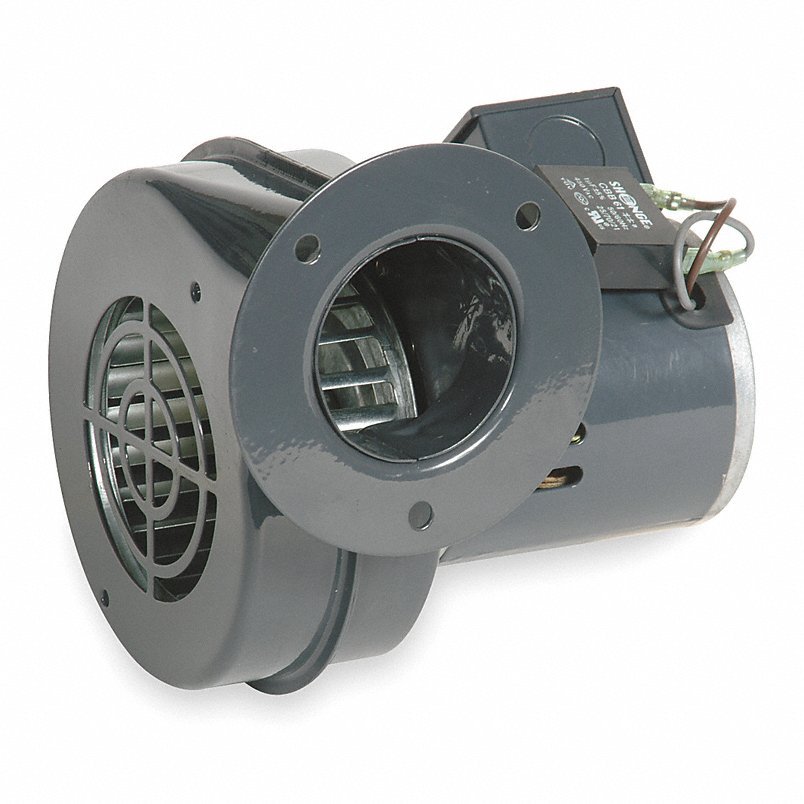

Blower Item |
OEM Specialty Blower |
Blower Outlet Shape |
Round |
With Flange |
Yes |
Blower Motor Type |
Permanent Split Capacitor |
Blower Voltage |
115V AC |
Blower Thermal Protection |
Auto |
Blower Conduit Box |
Yes |
Replaces |
4C443 |
Housing Color |
Gray |
Mounting Position |
All Position |
CFM @ 0.300-In. SP |
66 |
CFM @ 0.500-In. SP |
56 |
Agency Compliance |
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
Housing Finish |
Enamel |
Bearing Type |
Ball |
Motor Insulation |
Class B |
Hz |
50/60 |
Item |
OEM Blower |
CFM @ 0.000-In. SP |
75 |
CFM @ 0.400-In. SP |
61 |
Max. Ambient Temp. |
104 Degrees F |
Max. Inlet Temp. |
104 Degrees F |
RPM |
3016 |
Wheel Type |
Forward Curve |
Motor Enclosure |
Open |
CFM @ 0.200-In. SP |
68 |
Airflow @ 1.500 in SP Range |
More than 4000 cfm |
Airflow @ 4.000 in SP |
Not Applicable |
Speed Controllable |
No |
High-Efficiency Motor |
No |
Market |
Commercial, Industrial, Residential |
Minimum Ambient Temperature |
-10 Degrees C |
Airflow @ 11.00 in SP |
Not Applicable |
Airflow @ 1.250 in SP |
Not Applicable |
Sound Level |
Not Rated |
Spark Resistant Construction Type |
Not Rated |
Airflow @ 10.00 in SP |
Not Applicable |
Wheel Material Finish |
Galvanized |
Airflow @ 6.000 in SP |
Not Applicable |
Airflow @ 4.500 in SP |
Not Applicable |
Number of Inlets |
1 |
Nominal Voltage |
115V AC |
Hazardous Location Specification |
Not Applicable |
For Air Type |
Clean Air |
Motor Duty Class |
Continuous |
Flange Type_broad |
Flanged Outlet |
Mounting Orientation |
Multiposition |
OEM Replacement |
Yes |
Airflow @ 7.000 in SP |
Not Applicable |
Motor Type |
Permanent Split Capacitor |
Corrosion Resistant |
No |
Includes Motor |
Yes |
Airflow @ 0.750 in SP |
Not Applicable |
Maximum Static Pressure |
1 1/8 in wc |
Airflow @ 2.500 in SP Range |
More than 5000 cfm |
Assembly |
Assembled |
For Ventilation Type |
Exhaust, Make-Up, Return, Supply |
Includes Drive Package |
Not Applicable |
Brake Horsepower |
1/70 hp |
Motor Speed |
3,020 RPM |
Resistance Properties |
Corrosion Resistant |
Mount Type |
All Position |
Motor Enclosure Design |
Open |
Motor IP Rating |
IP20 |
Features |
Maintains cfm at Higher Static Pressures, Open Motors with Cast-Aluminum End Shields Dissipate Heat to Help Reduce Downtime and Extend Service Life |
Electrical Connection |
Wire Leads |
Chemical Resistant |
No |
Outlet Shape |
Round |
Discharge Position |
Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
For High-Static Pressure Applications |
No |
Frequency |
50/60 Hz |
Flange Type |
Flanged |
Housing Material Grade |
SPCC |
Maximum Ambient Temperature |
104 Degrees F |
Outlet Shape_broad |
Round |
For Fan Speed (Dependent on Motor) |
0 RPM to 3,016 RPM |
Airflow @ 1.500 in SP |
Not Applicable |
Airflow @ 2.000 in SP |
Not Applicable |
Airflow @ 3.500 in SP |
Not Applicable |
Airflow @ 12.00 in SP |
Not Applicable |
Airflow @ 8.000 in SP |
Not Applicable |
Minimum Fan Speed |
0 RPM |
Rotation |
CW |
Thermal Overload Protection |
Yes |
Airflow @ 0.000 in SP |
75 cfm |
Airflow @ 13.00 in SP |
Not Applicable |
Includes Mounting Hardware |
No |
Application |
Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
Airflow @ 1.000 in SP |
Not Applicable |
Housing Material Finish |
Enamel |
Airflow @ 0.100 in SP |
71 cfm |
Maximum Fan Speed |
3,016 RPM |
Maximum Inlet Air Temperature |
104 Degrees F |
Airflow @ Static Pressures |
75 cfm @ 0.000 in SP / 68 cfm @ 0.250 in SP |
Motor Frame Designation |
3.3" PSC Motor |
Nameplate Voltage |
115V AC |
Replacement For |
4C443 |
Housing Material Gauge |
0.8 mm |
Inlet Type |
Single-Inlet |
Hazardous Location Application |
No |
Airflow @ 9.000 in SP |
Not Applicable |
Airflow @ 0.500 in SP Range |
0 to 999 cfm |
AMCA Fan Class |
Not Rated |
Current |
0.45 A |
Standards |
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower |
Compatible Speed Control |
No |
Airflow @ 3.000 in SP |
Not Applicable |
For Location |
Indoor |
Airflow @ 0.375 in SP |
Not Applicable |
Motor Location |
Out of Airstream |
Airflow @ 0.500 in SP |
56 cfm |
Airflow @ 5.000 in SP |
Not Applicable |
Motor Enclosure Design_Table |
Open Motor |
Airflow @ 2.500 in SP |
Not Applicable |
Material |
Steel Wheel & Steel Housing |
Airflow @ 0.125 in SP |
Not Applicable |
Airflow @ 0.400 in SP |
61 cfm |
Motor Insulation Class |
B |
Motor Horsepower |
1/70 hp |
Airflow @ 0.250 in SP |
68 cfm |
Wheel Material |
Steel |
Package Quantity |
1 |
