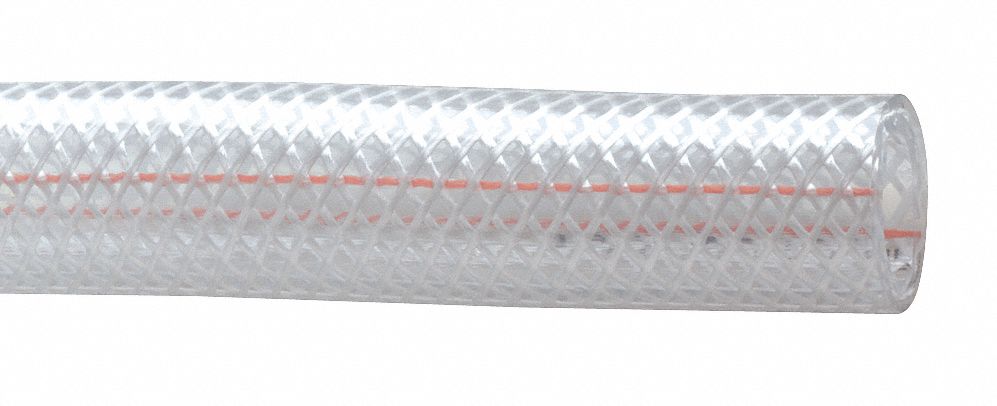

Kuriyama K3150-24 Clearbraid PVC Tubing, 1 1/2 in ID, 1 15/16 in OD, 50 ft, Clear

Kuriyama K3150-24 Clearbraid PVC Tubing, 1 1/2 in ID, 1 15/16 in OD, 50 ft, Clear

UPC: | Harmonization / Schedule B : 3917.39.0020

Country of Origin: United States | Shipping Weight: 66.0 lbs

$897.31 - $897.31
$897.31
$897.31 - $897.31
$897.31

Tubing, Application Air, Beverage, Food, Water, Color Clear, Food Application Food and Beverage, Hardness Shore A 73, Inside Diameter 1 1/2 in, Jacket Material No Jacket, Material PVC, Material Trade Name Clearbraid, Maximum Operating Pressure 100 psi @ 70 Degrees F, Maximum Operating Temperature 150 Degrees F, Maximum Vacuum Pressure 8 in Hg, Outside Diameter 1 15/16 in, Overall Length 50 ft, Peristaltic Pump Compatible No, PEX Type Not Applicable, Resistance Properties Chemical Resistant

Tube Material PVC
Tube Hardness Shore A: 73
Max. Pressure 100 psi @ 70 Degrees F
Tube Color Clear
Tensile Strength 2,175 psi
Vacuum Rating 8 in Hg
Standards 3-A, FDA, USDA, NSF, NSF 51, RoHS Compliant, UL, USP Class VI
Application Air, Beverage, Food, Water
SAE or Metric SAE
Flexibility Flexible
Temp. Range 25 Degrees to 150 Degrees F
Material PVC
Features Non Conductive, Non Marking, Self-Extinguishing, Silicone-Free
Color Clear
Food Application Food and Beverage
For Fluid Type Beverages, Deionized Water
Maximum Operating Pressure 100 psi @ 70 Degrees F
Minimum Operating Temperature 25 Degrees F
Stripe Color No Stripe
Maximum Operating Temperature 150 Degrees F
Jacket Material No Jacket
Does Not Contain Phthalates
Resistance Properties Chemical Resistant
Industry Application Liquid Food Products, Packaging Machines, Powdered Food Products
Flow Application Air and Water Lines, Air Breathing Lines, Food and Beverage, Pneumatic Lines, Potable Water Transfer
Peristaltic Pump Compatible No
Reinforcement Polyester Braid with Longitudinal Yarn
Maximum Vacuum Pressure 8 in Hg
Clarity Clear
Fitting Compatibility Barbed
Vacuum Rated Vacuum Rated
Hardness Shore A 73
Material Trade Name Clearbraid
Autoclavable No
Tube Form Coil
System of Measurement Inch
Country of Origin United States
