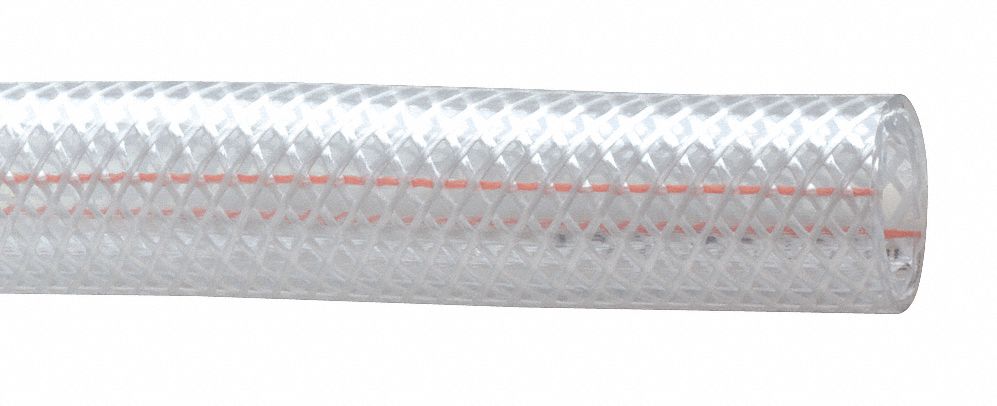

Kuriyama K3150-06 Clearbraid PVC Tubing, 3/8 in ID, 19/32 in OD, 100 ft, Clear

Kuriyama K3150-06 Clearbraid PVC Tubing, 3/8 in ID, 19/32 in OD, 100 ft, Clear

UPC: | Harmonization / Schedule B : 3917.39.0020

Country of Origin: Germany | Shipping Weight: 8.95 lbs

$108.71 - $108.71
$108.71
$108.71 - $108.71
$108.71

Tubing, Application Air, Beverage, Food, Water, Color Clear, Food Application Food and Beverage, Hardness Shore A 73, Inside Diameter 3/8 in, Jacket Material No Jacket, Material PVC, Material Trade Name Clearbraid, Maximum Operating Pressure 225 psi @ 70 Degrees F, Maximum Operating Temperature 150 Degrees F, Maximum Vacuum Pressure 28 in Hg, Outside Diameter 19/32 in, Overall Length 100 ft, Peristaltic Pump Compatible No, PEX Type Not Applicable, Resistance Properties Chemical Resistant

Tube Material PVC with Spiraled Polyester Yarn
Tube Hardness Shore A: 73
Max. Pressure 225 psi @ 70 Degrees F
Tube Color Clear
SAE or Metric SAE
Application Air, Beverage, Food, Water
Standards 3-A, FDA, USDA, NSF, NSF 51, RoHS Compliant, UL, USP Class VI
Tensile Strength 2,200 psi
Flexibility Flexible
Vacuum Rating 28 in Hg
Temp. Range 25 Degrees to 150 Degrees F
Material PVC
Color Clear
Features Non Conductive, Non Marking, Self-Extinguishing, Silicone-Free
Food Application Food and Beverage
Maximum Vacuum Pressure 28 in Hg
Industry Application Liquid Food Products, Packaging Machines, Powdered Food Products
Does Not Contain Phthalates
Vacuum Rated Vacuum Rated
Reinforcement Polyester Braid with Longitudinal Yarn
For Fluid Type Beverages, Deionized Water
Jacket Material No Jacket
Peristaltic Pump Compatible No
Resistance Properties Chemical Resistant
Fitting Compatibility Barbed
Clarity Clear
Flow Application Air and Water Lines, Air Breathing Lines, Food and Beverage, Pneumatic Lines, Potable Water Transfer
Stripe Color No Stripe
Hardness Shore A 73
Autoclavable No
System of Measurement Inch
Material Trade Name Clearbraid
Tube Form Coil
Maximum Operating Pressure 225 psi @ 70 Degrees F
Maximum Operating Temperature 150 Degrees F
Minimum Operating Temperature 25 Degrees F
Country of Origin Germany
