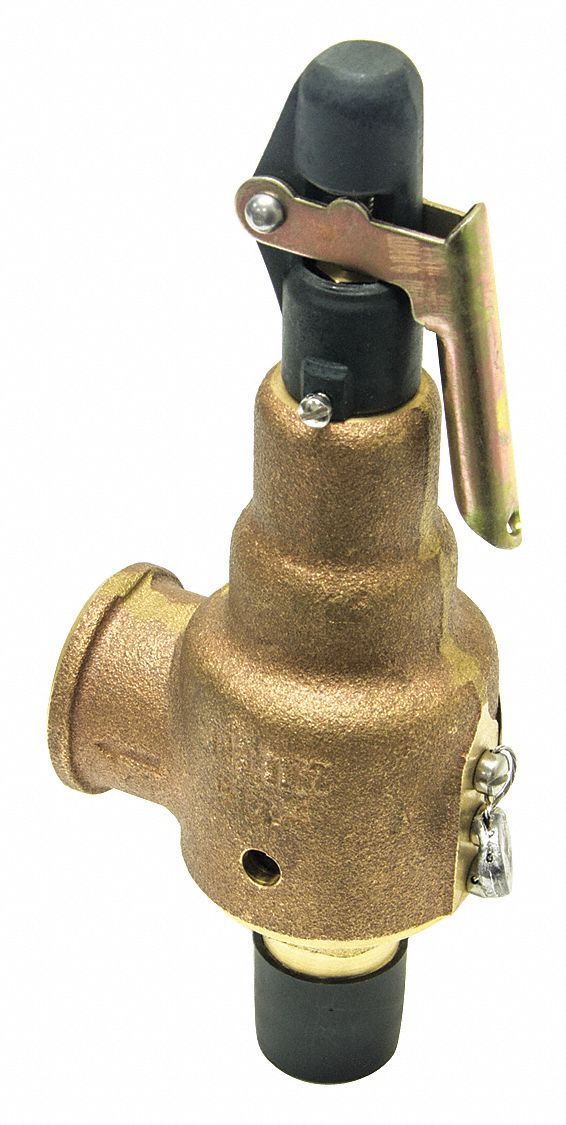

Kunkle Valve 6010DCM01AKM0150 1/2 x 3/4 150 psi Safety Relief Valve

Kunkle Valve 6010DCM01AKM0150 Safety Relief Valve, 1/2 in MNPT x 3/4 in FNPT, 150 psi, Bronze, ASME Section VIII

UPC: | Harmonization / Schedule B : 8481.40.0000

Country of Origin: United States | Shipping Weight: 1.5 lbs

$418.96 - $418.96
$418.96
$418.96 - $418.96
$418.96

Safety Relief Valve, Body Material Bronze, Inlet Type MNPT, Outlet Type FNPT, Inlet Size 1/2 in, Outlet Size 3/4 in, Factory Set Pressure 150 psi, Disc Material Brass, Overall Height 6 1/2 in, Overall Length 1 5/8 in, Seat Material Metal, Spring Material Stainless Steel. Application: Air/Gas Compressors, Intercoolers and Aftercoolers, Pressure Reducing Stations, Pressure Vessels-Containing Steam, Steam Boilers and Generators, Tanks, Receivers, Sterilizers and Autoclaves.

Body Material Bronze
Outlet Type FNPT
Inlet Type MNPT
Factory Set Pressure 150 psi
Compliance Section VIII Air/Gas
Spring Material Stainless Steel
Seat Material Metal
Standards ASME Code UV
Test Lever Test Lever Included
Disc Material Brass
Temp. Range -60 Degrees to 406 Degrees F
Product Type Safety Relief Valve
ASME Section Code Section VIII, Section XIII
Inlet Connection Gender Male
Operating Temperature - Minimum -60 Degrees F
Operating Pressure - Minimum 18 psi
Outlet Connection Gender Female
Operating Pressure - Maximum 314 psi
Inlet Connection Type NPT
For Media Air, Gas
Outlet Connection Type NPT
Operating Temperature - Maximum 425 Degrees F
Country of Origin United States
