| Application |
It is An Ideal General Purpose Sealant, Designed to Be Injected into the Valve Body Using A High Pressure Lubricator |
| Color |
Brown |
| Temp. Range |
0 Degrees to 250 Degrees F |
| For Use On |
Can be Used in Direct Contact with Both Gaseous and Liquid Hydrocarbons |
| Sealant Container |
Pail |
| Item |

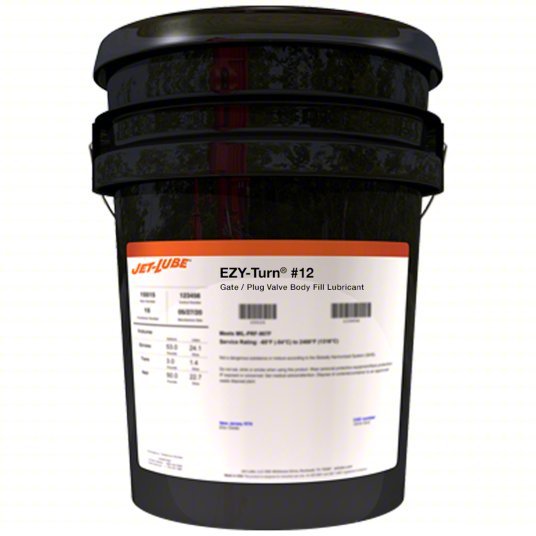

Gate Valve Sealant |
| Density |
10.9 lb/gal |
| For Use With |
Christmas Trees or Line Valves, Also Services That Involve Mixtures of Hydrocarbons With Salt Water, Dilute Acids, Alkalis and Other Mixtures |
| Characteristics |
Hydrocarbon Resistant, Injectable and Biodegradable, Nontoxic, Water Resistant |
| Dropping Point |
None |
| Flash Point |
400 Degrees F |
| pH Range |
2 to 9 |
| Appearance |
Beige/ Brown Paste |
| Thickener |
Inorganic |
| Specific Gravity |
1.3 |
| Standards |
ASTM D-217, ASTM D-2265, ASTM D-92, FTMS 791.B.M.321.2 |
| Container Type |
Pail |
| Chemical Base |
Polymer, Vegetable Oil |
| Industry Application |
Oil Field |
| For Valve Type |
Gate |
| Application Method |
Injectable |
| Minimum Viscosity |
260,000 cps |
| Compatible pH |
2 to 9 |
| Product Form |
Paste |
| Storage Requirements |
Cool and Well-Ventilated Place |
| Features |
Biodegradable, Leak Proof Seal, Non-Hazardous |
| Maximum Operating Temperature |
250 Degrees F |
| Clean Up Method |
Acetone, Aromatic Solvents, Chlorinated Solvents, Ethanol, IPA, Methanol |
| Resistance Properties |
Non-Flammable |
| Minimum Operating Temperature |
0 Degrees F |
| Non-Toxic |
Yes |
| Maximum Viscosity |
560,000 cps |
