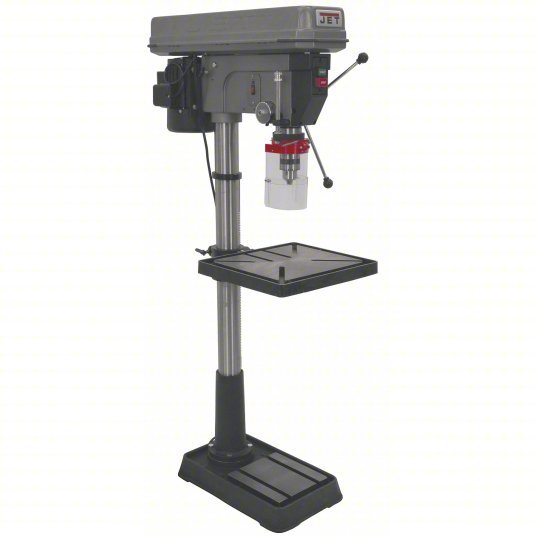

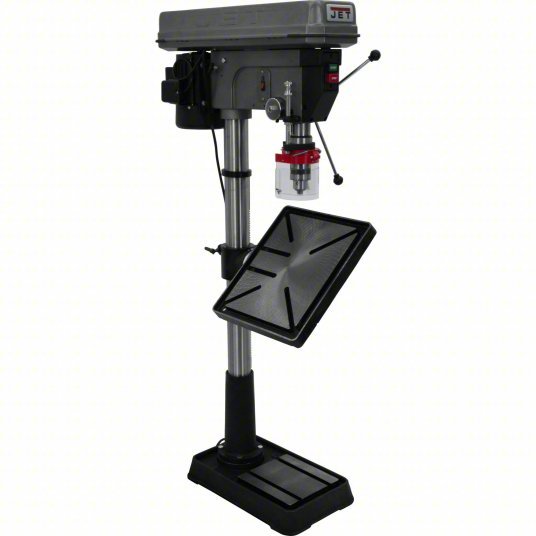

Jet 354170 Belt, Fixed, 150 RPM – 4,200 RPM, 115/230V AC /Single-Phase, 20 in Swing

UPC: 662755104121 | Harmonization / Schedule B : 8465950060

Country of Origin: china | Shipping Weight: 305 lbs

$2,853.93 - $2,853.93
$2,853.93
$2,853.93 - $2,853.93
$2,853.93

Floor Drill Press, Primary Material Application Metal, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Drilling, Speed Control Fixed, Speed Adjustment Step Pulley, Swing 20 in, Spindle-to-Column Distance 10 in, Horsepower 1 1/2 hp, Voltage 115/230V AC, Spindle Taper MT3, Number of Speeds 12, Chuck Size 3/4 in, Chuck Style Keyed, Guard Included Yes, Coolant System No, Quill Diameter 2 7/16 in, Drilling Capacity in Steel 5/8 in

Drill Press Product Grouping General Purpose Drill Presses
UPC 662755104121
Drive Type Belt
Swing 20 in
Voltage 115/230V AC
Motor HP 1 1/2 hp
Number of Speeds 12
Capacity Steel 3/4 in
Spindle Speed 150 to 4200 rpm
Corded/Banded Corded
Table Work Surface 18-1/2 in x 16 in
Drilling Capacity Wood Not Specified
Hz 60
Power Down Feed Included No
Includes Chuck with Key
Spindle Travel 4 5/8 in
Spindle to Table 29 1/8 in
Spindle Taper MT3
Corded/Cordless Corded
Tilting Angle 45 Degrees
Max. Spindle To Base 46 3/4 in
Number of T-Slots 6
Phase Single-Phase
Capacity Cast Iron 1 in
Application Drilling
Tool Weight 282 lb
Drilling Capacity in Cast Iron 1 in
Drilling Capacity in Stainless Steel 5/8 in
Current 18/9 A
Table Load Capacity 80 lb
Power Source Corded

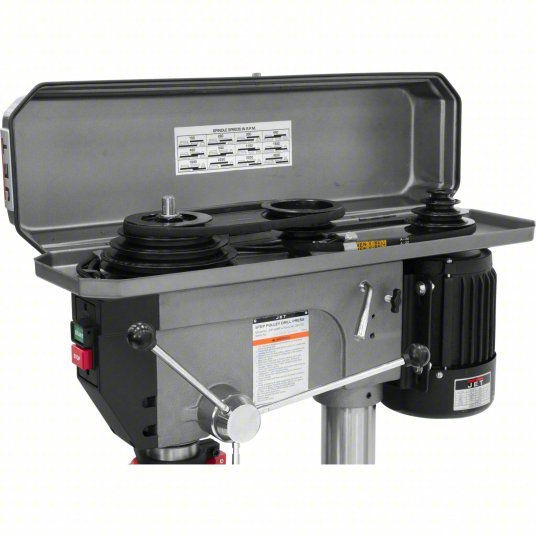

Speed Adjustment Step Pulley
Horsepower 1 1/2 hp
Table Tilt 45 Degrees
Drilling Capacity in Steel 5/8 in
Chuck Capacity 3/4 in
Speed Control Fixed
Speed Range 150 to 4,200 RPM
Table Slot Yes
Primary Material Application Metal
Drill Press Application Drilling
Drilling Capacity in Wood 3/4 in
Guard Included Yes
Chuck Style Keyed
Coolant System No
Maximum Spindle Speed 4,200 RPM
Table Shape Rectangular
Drill Press Type Floor Stand
Minimum Spindle Speed 150 RPM
Radial Arm No
Number of Spindle Speeds 12
Spindle-to-Column Distance 10 in
