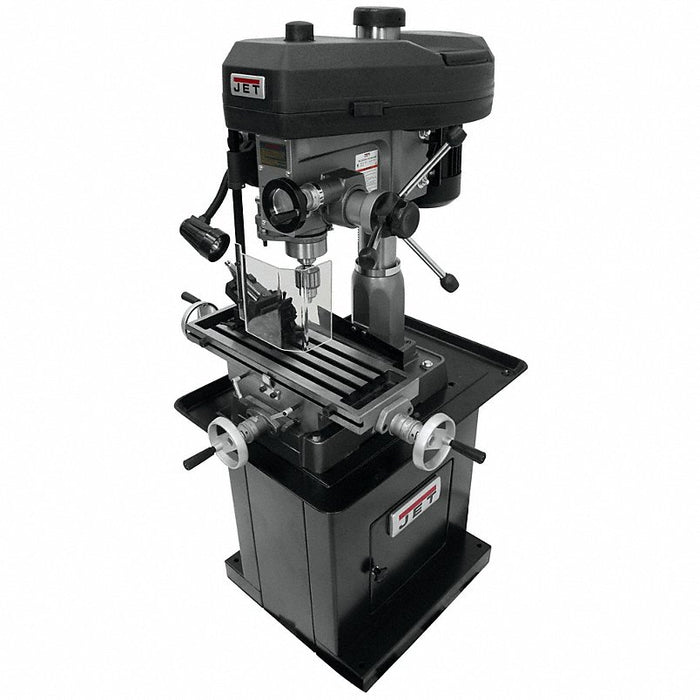

Jet 350017 Mill/Drill Machine, 1 HP
UPC: 662755103896 | Harmonization (Schedule B): 8465.95.0060
SKU KV80181555
Original price
$3,559.46
-
Original price
$3,559.46
Original price
$3,559.46
$3,559.46
-
$3,559.46
Current price
$3,559.46
Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.
| Swing | 14 1/2 in |
| Voltage | 120/240V |
| RPM | 110 to 2580 |
| Item | Mill Drill Machine |
| Drilling Capacity Steel | 1 in |
| Spindle Speed | 110 to 2580 rpm |
| Face Milling Capacity | 2 1/2 in |
| Motor HP | 1 |
| Phase | 1 |
| Longitudinal Travel | 14 in |
| Cross Travel | 5 1/2 in |
| Amps | 26.0/13.0 |
| End Milling Capacity | 1/2 in |
| Features | 360 Degrees Head Swivel, Belt Cover, Cast Iron Column, Large Hand Wheel Knobs, Quick Slide Latch, Quick Stop Knob, UL Listed Motor |
| Motor Type | TEFC - UL LISTED |
| Spindle | R8 |
| Operation | Manual |
| Corded/Cordless | Corded |
| Corded/Banded | Corded |
| T-Slots | 9/16" |
| Head | Belt Drive |
| Spindle Taper | R8 |
| Spindle Travel | 3 1/2 in |
| Spindle to Table | 15 in |
| Table Work Surface | 7-1/2 in x 23 in |
| Milling and Drilling Machine Product Grouping | Mill/Drill Machines |
| Includes | Work Light, Chuck, Arbor, Draw Bar, Chuck Guard, Adjustable Carbide Facemill |
| Hz | 60 |
| Power Source | Corded |
| Frequency | 60Hz |
| Speed | 110 to 2580 rpm |
| Motor Horsepower | 1 |
| Package Quantity | 1 |
