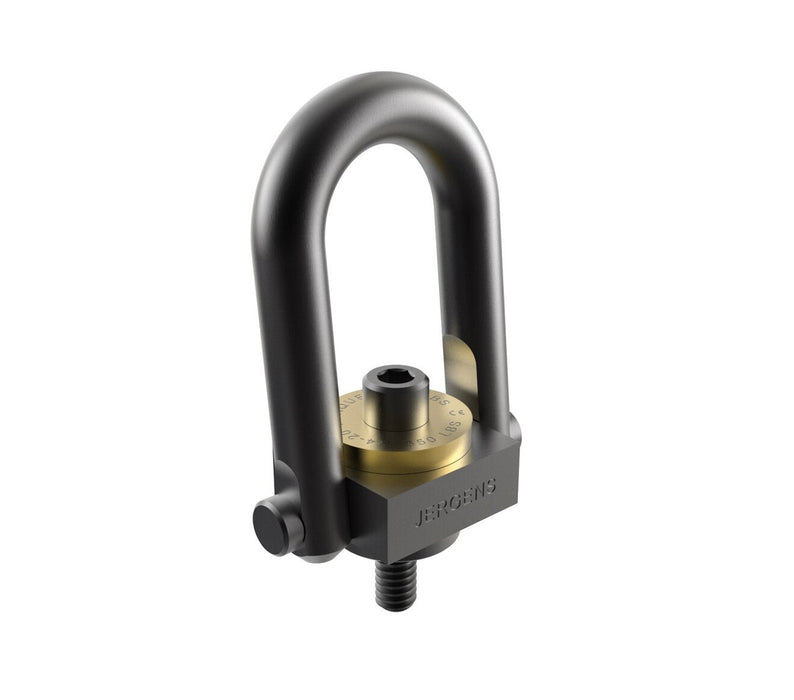

Jergens 23418 Hoist Ring, 5000#, 3/4-10, Center Pull, C=1 1/2

UPC: | Harmonization (Schedule B): 8431.49.1090

SKU KV82501305
Original price $144.25 - Original price $144.25
Original price
$144.25 - $144.25
Current price $144.25
Jergens Center-Pull Hoist Rings are made the way they should be: right here in the USA, starting with domestically-produced, certified alloy steel. Choose Jergens and get tough, dependable, American-made quality every time.
Features, Benefits, & Product Specifications:
  • Material & Finish: Alloy Steel, Black Oxide
  • Washer Material & Finish:
    • Inch: Zinc Plated with Gold Color
    • Metric: Zinc Plated with Clear/Blue Conversion Coating
  • U-Bars, Bolts, Pins, Bases, Washers, and Bushings are Magnetic Particle Inspected
  • Conforms to ASME B30.26 and MIL-STD-209K

Safety Engineered Center Pull Hoist Ring: Bolt-On, 5000 Lb Capacity

Hoist Ring Type Safety Engineered Center Pull
Thread Size 3/4-10
Ring Height (Decimal Inch) 4.7800
Material Alloy Steel
Ring Thickness 1.0000
Ring External Width (Inch) 3.5200
Ring Internal Width (Inch) 1.5000
Torque 100.00 FT/LB
Finish Black Oxide
Material Grade 4140
Mount Type Bolt-On
Number Of Mounting Holes 1
Standards CE
H 3.52
No Description 1.99
No Description 1.5000
Diameter (Decimal Inch) 0.7500
C-Projection Gage Line to Nose End (Decimal Inch) 1.2200
Load Capacity 5000 Lb
D -In-- 3/4
UNSPSC Code 24101600
F -In-- 4.780
