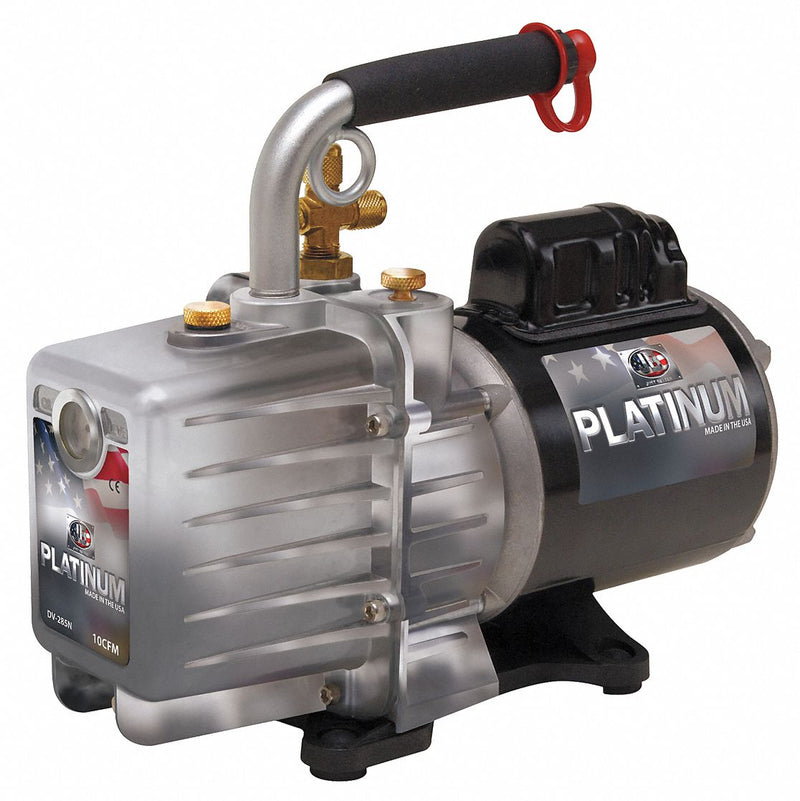

JB Industries DV-285N Vacuum Pump, 10 cfm, 15 micron Ultimate Vacuum, 120V AC, A2L Compatible, Male, Flare

JB Industries DV-285N Vacuum Pump, 10 cfm, 15 micron Ultimate Vacuum, 120V AC, A2L Compatible, Male, Flare

UPC: 684520102958 | Harmonization / Schedule B : 8414.10.0000

Country of Origin: United States | Shipping Weight: 35.3 lbs

$1,303.89 - $1,303.89
$1,303.89
$1,303.89 - $1,303.89
$1,303.89

Vacuum Pump, 10 cfm Displacement, 1/2 hp HP, Inlet Port Size 1/4 in and 1/2 in Flare, 3/8 in, Voltage 120V AC, Amps AC 7.7 A, 60 Hz Hz, 15 micron End Vacuum, Overall Length 14 in, Overall Height 9.1 in, Overall Width 18 in, Weight 34 lb, Oil Capacity 21 oz, Cord 6 ft, Body Material Aluminum, Includes Large Sight Glass for Improved Oil Viewing

Inlet Port Size 1/4 in and 1/2 in Flare, 3/8 in
Overall Length 14 in
Overall Width 18 in
Overall Height 9.1 in
Height 12 in
Width 5 5/8 in
Inlet 1 Port Connection Size 1/2 in
Inlet 3 Port Connection Size 3/8 in
Inlet 2 Port Connection Size 1/4 in
Cord Length 6 ft
Wire Rope Length 14 in
Length 14 in
MFR # DV-285N
Zoro # G2802511
UPC # 684520102958
Country of Origin United States
HP 1/2 hp
Voltage 120V AC
Weight 34 lb
Amps AC 7.7 A
Displacement 10 cfm
End Vacuum 15 micron
Cord 6 ft
Body Material Aluminum
Includes Large Sight Glass for Improved Oil Viewing
Oil Capacity 21 oz
Hz 60 Hz
Motor Type Dual Voltage
Application For Air Conditioning and Refrigeration System Evacuation
Standards CE Certified, CSA Certified, EMC, UL Listed
Inlet 3 Port Connection Type Flare
Motor Speed 1,725 RPM
Inlet 1 Port Connection Gender Male
Product Type Vacuum Pump
Inlet 2 Port Connection Thread Direction Right-Hand
Drain Port Connection Thread Direction Right-Hand
Inlet 2 Port Connection Type Flare
Includes Oil Mist Filter Oil Mist Filter Not Included
Calibration Certificate Type Not Certified
Inlet 3 Port Connection Thread Direction Right-Hand
Series PLATINUM
Frequency 60 Hz
Includes Sightglass Sightglass Included
Number of Inlet Ports 3
Inlet 1 Port Connection Type Flare
Horsepower 1/2 hp
Reservoir Port Connection Thread Direction Right-Hand
Number of Stages Two-Stage
Warranty 2 yr
Plug Configuration 5-15P
Power Source Plug-In
Includes Isolation Valve Isolation Valve Included
Includes Vacuum Gauge Gauge Not Included
Includes Gas Ballast Gas Ballast Included
Mobility Handle
Ultimate Vacuum 15 micron
Current 7.7 A
Includes Hoist Clip Hoist Clip Included
Inlet 1 Port Connection Thread Direction Right-Hand
Drive Type Direct Drive
Inlet 3 Port Connection Gender Male
A2L Compatibility A2L Compatible
Power Source - TS Only Plug-In
Power Source - old Plug-In
Country of Origin USA (subject to change)
