Intermatic LC4536C Photocontrol 120 to 277V AC, 2,300 W Max. Watt, 15 A Max. Incandescent Amps, 0.5, 15, Locking - KVM Tools Inc.KV5U792

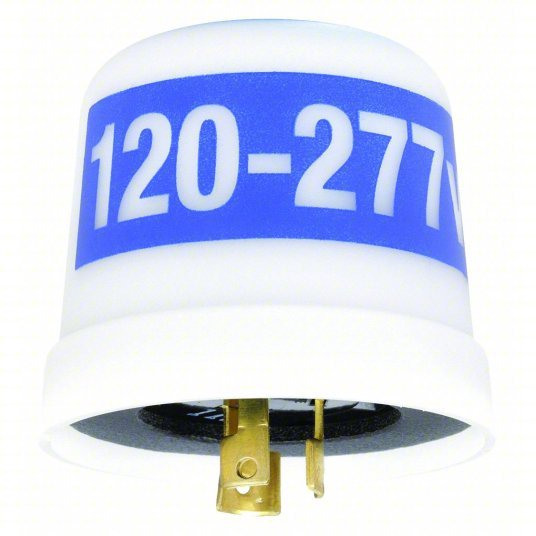

Intermatic LC4536C Photocontrol 120 to 277V AC, 2,300 W Max. Watt, 15 A Max. Incandescent Amps, 0.5, 15, Locking

UPC: 094700438393 | Harmonization / Schedule B : 8536.50.9065

Country of Origin: Mexico | Shipping Weight: 0.2 lbs

$48.24 - $48.24
$48.24
$48.24 - $48.24
$48.24
Photocontrol, Mounting Locking, Voltage 120 to 277V AC, Max. Wattage 2,300, Max. Incandescent Amps 15 A, Max. Ballast Amps 8.3 A, 0.5 Foot Candles On, 15 Foot Candles Off, Color White/Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 2 3/4 in, Width 3 in, Depth 3 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polypropylene, Setting Dusk to Dawn, Standards CSA, UL, Includes Locking Nut, Washer Gasket
Item Photocontrol
For Use With Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Mounting Locking
Voltage 120 to 277V AC
Max. Wattage 2,300
Max. Incandescent Amps 15 A
Max. Ballast Amps 8.3 A
Foot Candles On 0.5
Foot Candles Off 15
Color White/Gray
Temp. Range -40 Degrees to 158 Degrees F
Description/Special Features Built in Delay
Contact Form SPST
Housing Material Polypropylene
Includes Locking Nut, Washer Gasket
Standards CSA, UL
Enclosure Type Raintight
Setting Dusk to Dawn
Accessory Type Photocontrol
Photocontrol Type Thermal
Input Voltage Ranges 120-277 VAC, 50/60 Hz
Fail Mode ON
Photocontrol Photocell Type Cadmium Sulfide
Operating Temperature Min -40 °C
CSA Certification cCSAus
Other Certifications Title 20; Ansi C136.10
Tungsten Load Ratings Ranges 15 A, 1800-4155 W
Photocontrol Sensor Location Side
Magnetic Ballast Load Ratings 8.3 A, 1000-2300 VA
Expected Lifetime Operations 3650
Operating Temperature Max 158 °C
Sensor Time Delay 30 sec to 90 sec
Expected Lifetime Years 5
Activation On 5 fc
UL Certification UL
Usage Environments Outdoor
Activation Off 15 fc
Tungsten Load Ratings 15 A, 1800-4155 W
Packaging Applications Exterior Lighting; Street Lighting; Parking Lot; Pedestrian Pathway Lighting; Landscape Lighting
Application Compatibilities HID; Incandescent
Cover Color White with Blue Band
Market Commercial; Utility; Industrial
Solutions Lighting Control; Panel Integrators
Photocontrol Style Locking type
Photocontrol Switch Type Mechanical Bimetal
Applications Outdoor Lighting Control
Magnetic Ballast Load Ratings Ranges 8.3 A, 1000-2300 VA
Operating Temperature Min (°F) -40
Photo Control Switch Type Mechanical Bimetal
Operating Temperature Max (°F) 158
Magnetic Ballast (NO) 8.3 A, 1000-2300 VA
Photocell Type Cadmium Sulfide
Input Voltage Range(s) 120-277 VAC, 50/60 Hz
Features Mechanical bimetal switch with Cadmium Sulfide photocell; Integral high impact thermoplastic housing; Locking type plug for quick installation and changeover; Delay feature prevents unwanted OFF switching; Complies with ANSI C136.10 standard; Tested to 3,650 ON/OFF cycles
Tungsten (NO) 15 A, 1800-4155 W
Magnetic Ballast Range(s) 8.3 A, 1000-2300 VA
Tungsten Range(s) 15 A, 1800-4155 W
