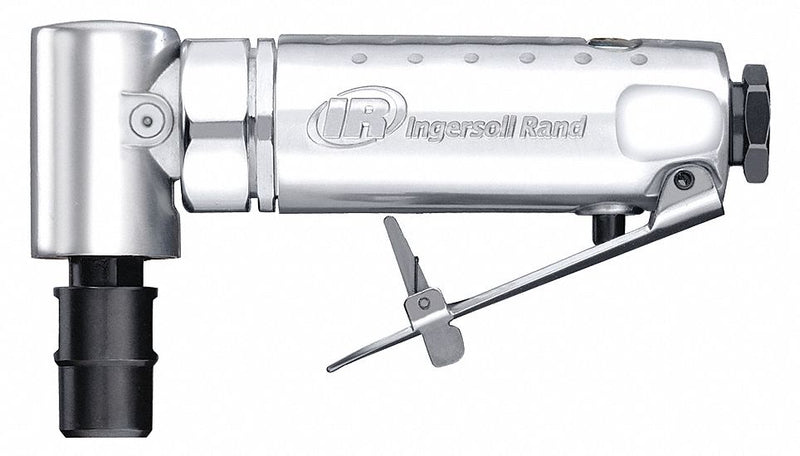

Ingersoll Rand 301B Die Grinder, Right Angle Tool, 0.3 hp Horsepower, 21,000 RPM Max. Speed, Medium Duty

Ingersoll Rand 301B Die Grinder, Right Angle Tool, 0.3 hp Horsepower, 21,000 RPM Max. Speed, Medium Duty

UPC: 663023106106 | Harmonization / Schedule B : 8467.11.1040

Country of Origin: India | Shipping Weight: 1.62 lbs

$89.78 - $89.78
$89.78
$89.78 - $89.78
$89.78

The INGERSOLL-RAND - 301B Die Grinder is a medium-duty, air-powered tool designed for grinding, sanding, honing, polishing or machining tasks. This versatile grinder operates at a maximum speed of 21,000 RPM and requires an air pressure of 90 psi for optimal performance. It features a right-angle design that allows it to maneuver in small spaces and perform detailed work. Key attributes include: Power: Powered by compressed air with a horsepower of 0.3 hp. Collet Size: Comes with both quarter-inch & six-millimeter collets for versatility. Speed: Operates at constant speed without variable speed adjustment. Safety Features: Equipped with safety lock lever and anti-restart technology for user protection. Air Inlet Connection Size: Requires an air inlet connection size of 1/4 inch NPT female. This die grinder adheres to ANSI S5.1-1971 & ISO28927 standards ensuring its quality and compatibility across various industries. The package includes the bare tool along with two wrenches enhancing functionality & usage flexibility. Please note this product is intended for general industrial applications; specific jobs or applications should be determined based on individual needs and requirements.

Overall Length 5 1/4 in
Min. Hose Size 3/8 in
Right Angle Length 2 3/16 in
Collet Size 6 mm, 1/4 in
Air Inlet Connection Size 1/4 in
Hose Size - Minimum 3/8 in
Wire Rope Length 5 1/4 in
Air Inlet 1/4 in NPT Female
Horsepower 0.3 hp
Free Speed 21,000 RPM
Max. Speed 21,000 RPM
Grinder Type Right Angle
Includes (2) Wrenches, 1/4 in Collet, 6mm Collet
CFM @ Full Load 24.0
Grinder Orientation Right Angle
Characteristics Lightweight
Bearing Type Ball
Duty Medium Duty
Throttle Lever
Variable Speed No
Handle Material Aluminum
Collet 1/4 in
Average CFM @ 15 Second Run Time 6.0
Housing Material metal
Tool Weight 1.02 lb
Air Consumption 24 cfm
Standards ANSI S5.1-1971, ISO 28927
Switch Location Bottom
Safety Features Safety Lock Lever, Lock-Off Switch
Vibration Level 5.9 m/sq sec
Tether Style Not Tether Capable
Features Ergonomic and Lightweight
Accessory Free Tool Change No
Anti-Vibration Technology Yes
Exhaust Location Front
Switch Type Safety Lever
Anti-Restart Technology Yes
Series 300 Series
Air Inlet Type NPT
Power Source Air-Powered
Lock-Off Switch Yes
Air Inlet Gender Female
Minimum Speed 21,000 RPM
Air Pressure 90 psi
Kit Contents (1) Bare Tool
Application Deburring, Polishing, Porting, Smoothing Edges, Weld Grinding
Tool Style Right Angle
Grip Style Barrel Grip
Tool Series 300
Frequency of Use Maintenance to Light Production
Speed - Minimum 21,000 RPM
Robot Mounting Components Included Tool Only
Speed - Maximum 21,000 RPM
Tool Life Long Lasting
Power Source - TS Only Air-Powered
Country of Origin India
