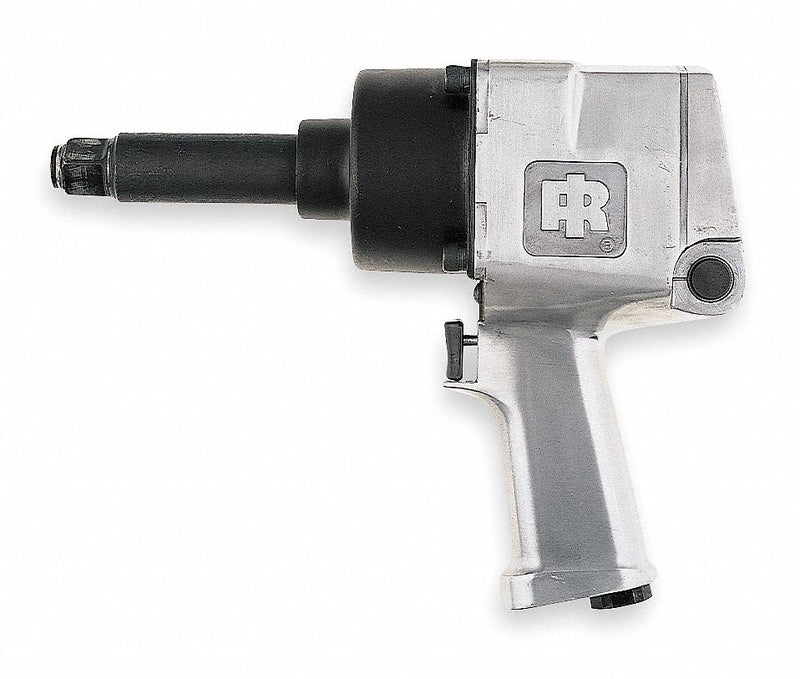

Ingersoll Rand 261-3 Air Impact Wrench, Full-Size, 3/4 in Drive, Pistol-Grip, Square, 3/8 in NPT Air Inlet

Ingersoll Rand 261-3 Air Impact Wrench, Full-Size, 3/4 in Drive, Pistol-Grip, Square, 3/8 in NPT Air Inlet

UPC: 663023005485 | Harmonization / Schedule B : 8468.90.1000

Country of Origin: China | Shipping Weight: 14.45 lbs

$1,115.40 - $1,115.40
$1,115.40
$1,115.40 - $1,115.40
$1,115.40

Impact Wrench, Power Source Air Powered, Air Consumption 38 cfm, Air Inlet 3/8 in NPT, Air Pressure 90 psi, Max. Air Pressure 100 psi, Min. Air Pressure 90 psi, Min. Hose Size 1/2 in, Exhaust Location Bottom, Duty Rating General Duty, Breakaway Torque 1,200 ft-lb, Fastening Torque 1,200 ft-lb, Free Speed 5,500 RPM, Impact Rated Yes, Impact Sound Level 98 dB, Impacts per Minute 1,000, Number of Speed Settings Continuous, Power to Weight Ratio 92.3 ft-lb/lb, Max. Bolt Capacity 3/4 in

Square Drive Size 3/4"
Drive Size - Air Tools 3/4" Square
Min. Hose Size 1/2 in
Air Inlet Size - Air Tools 3/8" NPT
Overall Length 11 13/16 in
Drive Size 3/4 in
Extended Anvil Length 3 in
Hose Size - Minimum 1/2 in
Air Inlet Connection Size 3/8 in
Wire Rope Length 11 13/16 in
Free Speed 5,500 RPM
Air Inlet 3/8 in NPT
Handle Type Pistol-Grip
Retainer Type - Air Impacts Ring
Blows per Minute - Air Tools 1000
Required Pressure 90 psi
Max. Torque 1200 ft.-lb.
Retainer Type Friction Ring
Body Style - Air Tools Pistol
Max. Bolt Capacity 3/4 in
Style Pistol Grip
Blows per Minute 1000
Item - Air Impact Wrenches Air Impact Wrench
Tool Weight 13 lb
Housing Material Aluminum
Torque Range 200 to 900 ft.-lb.
Duty Cycle - Air Tools General Duty
CFM @ Full Load 38.0
Duty General
Average CFM @ 15 Second Run Time 9.50
Features Jumbo Hammer Impact Mechanism, Reliability
Anvil Type - Air Impacts 3" Extended
Anvil 3" Extended
Handle Material Aluminum
Standards EN ISO 28927-2, EN ISO11148-6, EN ISO15744
Impact Sound Level 98 dB
Impacts per Minute 1,000
Drive Type Extended
Air Pressure 90 psi
Breakaway Torque 1,100 ft-lb
Built-In Light No
Max. Air Pressure 100 psi
Power Source Air-Powered
Duty Rating General Duty
Vibration Level 10.4 m/sq sec
Power to Weight Ratio 92.3 ft-lb/lb
Clutch Style Jumbo Hammer
Fastening Torque 600 ft-lb
Tool Style Full-Size
Air Consumption 38 cfm
Min. Air Pressure 90 psi
Number of Speed Settings Continuous
Exhaust Location Bottom
Impact Rated Yes
Air Inlet Type NPT
Air Pressure - Maximum 100 psi
Bolt Capacity - Maximum 1 in
Air Pressure - Minimum 90 psi
Frequency of Use Maintenance to Light Production
Drive Shape Square
Tool Life Long Lasting
Power Source - TS Only Air-Powered
Power Source - old Air-Powered
Country of Origin China
