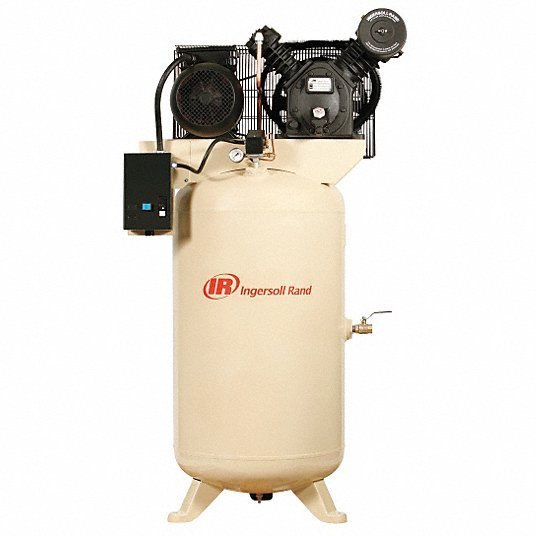

Ingersoll Rand 2475N7.5-V-230/3 Electric Air Compressor, 2 Stage, 24 cfm

UPC: 094721708055 | Harmonization (Schedule B): 8414.80.1625

SKU KV16V886
Original price $3,856.45 - Original price $3,856.45
Original price
$3,856.45 - $3,856.45
Current price $3,856.45

Electric Air Compressor, Lubrication Type Splash Lubricated, Air Tank Style Vertical, Number of Stages 2, Output Power 7.5 hp, Free Air Flow Rate @ Maximum Pressure 24 cfm, Maximum Operating Pressure 175 psi, Air Tank Size 80 gal, Input Voltage 240V AC, Phase Three, Frequency 60 Hz, Compressor Package Type Base Model, Pump Style Simplex, Pump Type Reciprocating, Pump Location Top Mount

Phase 3
HP 7-1/2
Voltage 230
Tank Type Vertical
Max. Pressure 175 psi
Includes Manual Drain Valve, Motor Starter, Pressure Gauge, Pressure Safety Valve
Compressor Type Tank Mounted
Free Air CFM @ Max. Pressure 24
Lubrication Type Splash Lubricated
Motor Type Open Dripproof
Compressor Package Type Base Model
Standards ASME, California Code, CSA
Control Pressure Switch
HP - Air Compressor 7.5 hp
Number of Stages - Air Compressor 2
Finish Powder Coated
Item Electric Air Compressor
Phase - Electrical 3
On Pressure Switch Setting 135
Pump RPM 1,500
Tank Style - Air Compressor Vertical
Pump Location - Air Compressor Tank Mounted
(F)NPT Outlet 3/4 in
Lubrication Type - Air compressor Splash Lubricated
Off Pressure Switch Setting 175 psi
Cylinder Material Cast Iron
Max. Pressure - Air Compressor 175 psi
Input Voltage - Air Compressor 240V AC
ASME Tank Yes
Amps 22
dBA @ 3 Feet 85.0
Item - Air Compressor Stationary Air Compressor
Style - Air Compressor Simplex
Hz 60
Free Air CFM @ Max. Pressure - Air Compressor 24.0
Enclosure NEMA 1
Pump Oil Capacity 41.6 oz
Number of Stages 2
Duty Cycle Continuous
Enclosure Type Open Dripproof
Frequency 60 Hz
Current Rating 22 A
Outlet Gender Female
Pump Location Top Mount
Input Voltage 240V AC
Max Operating Pressure 175 psi
Compressor Voltage 240V AC
Life Expectancy 15,000 hr
Tank Style (Broad) Vertical
Sound Level 85 dBA
Free Air Flow Rate @ Max Pressure 24 cfm
Output Power 7.5 hp
Sound Level Range Standard (70 dBA or more)
Pump Style Simplex
Maximum Operating Pressure 175 psi
Free Air Flow Rate @ Maximum Pressure 24 cfm
Outlet Type NPT
Air Tank Style Vertical
Control Type Pressure Switch
Enclosure Rating NEMA 1
Maximum Speed 1,500 RPM
Type Base Model
Package Quantity 1
