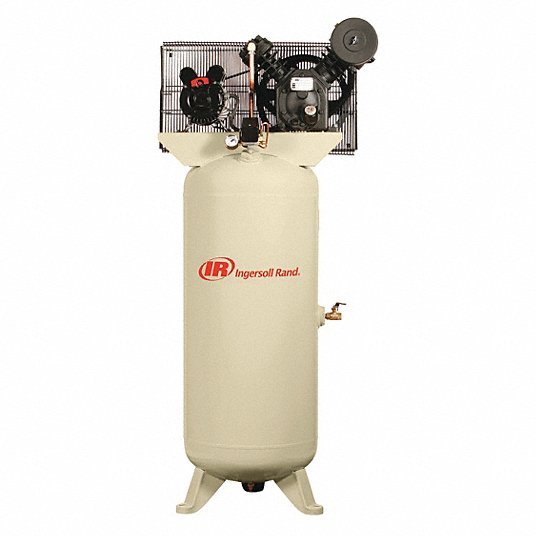

Ingersoll Rand 2340L5-V-230/3 Electric Air Compressor, 2 Stage, 14 cfm - KVM Tools Inc.KV16V888

Ingersoll Rand 2340L5-V-230/3 Electric Air Compressor, 2 Stage, 14 cfm

UPC: 094721708086 | Harmonization / Schedule B : 8414.80.1615

Country of Origin: United States | Shipping Weight: 460 lbs

$3,084.85 - $3,084.85
$3,084.85
$3,084.85 - $3,084.85
$3,084.85
Electric Air Compressor, Lubrication Type Splash Lubricated, Air Tank Style Vertical, Number of Stages 2, Output Power 5 hp, Free Air Flow Rate @ Maximum Pressure 14 cfm, Maximum Operating Pressure 175 psi, Air Tank Size 60 gal, Input Voltage 230V AC, Phase Three, Frequency 60 Hz, Compressor Package Type Base Model, Pump Style Simplex, Pump Type Reciprocating, Pump Location Top Mount
Phase 3
HP 5
Voltage 230
Tank Type Vertical
Max. Pressure 175 psi
Includes Manual Drain Valve, Motor Starter, Pressure Gauge, Pressure Safety Valve
Compressor Type Tank Mounted
Free Air CFM @ Max. Pressure 14
Lubrication Type Splash Lubricated
Motor Type Open Dripproof
Compressor Package Type Base Model
Standards ASME, California Code, CSA
Off Pressure Switch Setting 175 psi
Max. Pressure - Air Compressor 175 psi
Style - Air Compressor Simplex
Number of Stages - Air Compressor 2
ASME Tank Yes
Tank Style - Air Compressor Vertical
Phase - Electrical 3
Input Voltage - Air Compressor 230V AC
Free Air CFM @ Max. Pressure - Air Compressor 14.0
dBA @ 3 Feet 85.0
Item - Air Compressor Stationary Air Compressor
On Pressure Switch Setting 135
Pump RPM 1,575
Amps 12.3
Control Pressure Switch
HP - Air Compressor 5.0 hp
Item Electric Air Compressor
(F)NPT Outlet 1/2 in
Pump Location - Air Compressor Tank Mounted
Cylinder Material Cast Iron
Lubrication Type - Air compressor Splash Lubricated
Hz 60
Finish Powder Coated
Enclosure NEMA 1
Pump Oil Capacity 32 oz
Number of Stages 2
Duty Cycle Continuous
Free Air Flow Rate @ Max Pressure 14 cfm
Pump Style Simplex
Outlet Type NPT
Air Tank Style Vertical
Output Power 5 hp
Frequency 60 Hz
Input Voltage 230V AC
Enclosure Rating NEMA 1
Sound Level Range Standard (70 dBA or more)
Free Air Flow Rate @ Maximum Pressure 14 cfm
Control Type Pressure Switch
Current Rating 12.3 A
Tank Style (Broad) Vertical
Maximum Operating Pressure 175 psi
Sound Level 85 dBA
Outlet Gender Female
Maximum Speed 1,575 RPM
Enclosure Type Open Dripproof
Pump Location Top Mount
Max Operating Pressure 175 psi
Life Expectancy 15,000 hr
Compressor Voltage 230V AC
Type Base Model
Package Quantity 1
