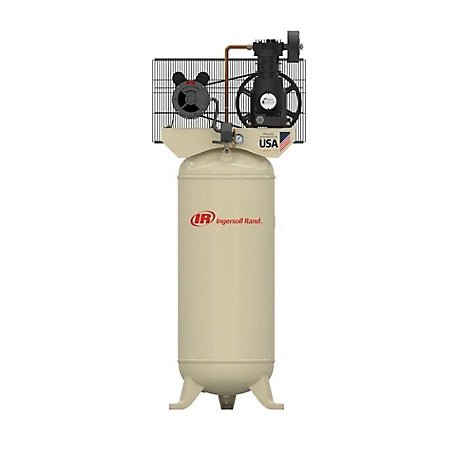

Ingersoll-Rand 20103172 5 hp 60 Gal Stationary Electric Vertical Air Compressor Single Phase, 230V, 135 Max psi, 18.1 CFM
The Ingersoll Rand Ingersoll Rand SS5L5 High Capacity Air Compressor is designed for professional duty. The durable cast iron construction of the high capacity air compressor is built with precision-engineered quality components. The oversized belt wheel of the air compressor allows for a reliable and cool operation. The high-efficiency stainless steel finger valves in the air compressor are efficient and easy to maintain.
- 60 gal. vertical tank
- Single-stage high capacity air compressor
- 1 year limited warranty
- Durable cast-iron cylinders, heads, and frame are designed for continuous operation and extended pump life
- Oversized belt wheel on the high capacity air compressor provides reliable design and cooler operation
- Ingersoll Rand synthetic lubricant provides 2,000-hour oil change intervals, four times longer than mineral-based lubricants
- High-efficiency stainless steel finger valves in the air compressor are simple, efficient, and easy to maintain
- Manual thermal overload protection of the air compressor's motor
- Designed for any environment, our 5 HP single stage compressor is ideal for almost anyone, from individuals that thrive on do-it-yourself projects to the professional air compressor user. When performance is defined by maximum operating pressure, increased air flow and extended duty cycles, Ingersoll Rand is the product of choice. You will get a compressor that features maximum air power, reliable precision engineered components and a durable design that is built to last.
- Long-Life: Durable cast iron construction, long-lasting extended pump life designed for over 5,000 hours of trouble-free use
Specification | Description |
---|---|
Brand | Ingersoll Rand |
Country of Origin | Made in USA |
Air Delivery SCFM At 40 PSI | 18.1 90 PSI |
Air Delivery SCFM At 90 PSI | 18.1 CFM |
Airflow Volume | 18.1 CFM 90 PSI |
Air Outlet Size | 1/2 in. |
Amperage | 21.5 Amp |
Compressor Horsepower | 5 HP |
Compressor Maximum PSI | 135 PSI |
Compressor Type | Vertical |
Compressor Voltage | 230V |
Decibel Rating | 78 dB |
Drain System | Manual |
Drive Type | Electric |
Features | The durable cast iron construction of the high capacity air compressor is built with precision-engineered quality components. |
Phase | Single |
Number Of Power Speeds | Single |
Number Of Wheels | 0 |
Power Type | Electric |
Primary Color | Beige |
Primary Material | Cast Iron |
Product Height | 80 in. |
Product Length | 50 in. |
Product Weight | 380 lb. |
Product Width | 40 in. |
Pump Material | Cast iron |
Stage Type | Single-Stage |
Tank Capacity | 60 gal. |
Tank Fill Time | 0 minutes |
Tank Orientation | Vertical |
Warranty | 1-Year Limited, 2-Year Pump Warranty with IR All Season Select Lubricant from initial startup |
Manufacturer Part Number | 20103172 |
