| Standards |
CSA Certified, UL Listed |
| Sensor Range |
CO 0 to 1000 ppm, H2S 0 to 500 ppm, LEL 0 to 10%, O2 0 to 30% |
| Features |
Sample Draw Distance of Up to 50 ft Provides Sampling in a Wide Range of Applications, No Tools are Required to Attach or Remove the Ventis Slide-On Pump to or from the Monitor, Three Available Battery Options |
| Item |

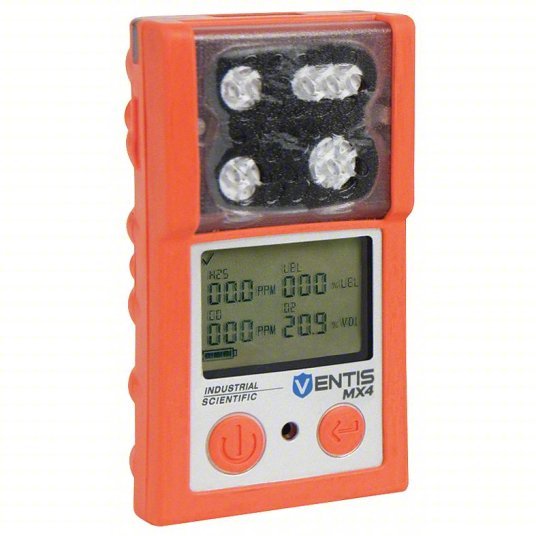

Multi-Gas Detector |
| Operating Temp. Range |
-20 Degrees to 50 Degrees C (-4 Degrees to 122 Degrees F) |
| Alarm Type |
Audible, Vibrating, Visual |
| Alarm Setting |
Adjustable |
| Resolution |
1% LEL, Carbon Monoxide 1 ppm, Hydrogen Sulfide 0.1 ppm, Oxygen 0.1% vol |
| Battery Life |
12 hr |
| Includes |
Calibration Cup, Sample Tubing |
| Housing Color |
Orange |
| Temp. Range |
-20 degree C -50 degree C (-4 degree F-122 degree F) |
| Power Source |
Battery |
| Chemical Formula |
CO/H2, H2S, NO2, O2, SO2 |
| IP Rating |
IP66/IP67 |
| Operating Humidity - Minimum |
15 % |
| Display Screen Type |
LCD with Backlight |
| Includes Probe |
No |
| Display Type |
Digital |
| Operating Temperature - Maximum |
122 Degrees F |
| Hazardous Location Specification |
Class I Zone 1, AEX D IA II C, T4, Class II Divisions 1, GR E-G, T4 Class I Zone 0, AEX IA IIC, T4, Class I Divisions 1 Groups A, B, C, D |
| Replaceable Battery |
Yes |
| Temperature Code |
T4 |
| Housing Material |
Polycarbonate |
| Includes Charger |
Yes |
| Alarm Setting Adjustment |
Adjustable Alarm Setting |
| Battery Chemistry |
Lithium Ion |
| Number of Sensors |
2 |
| Alert Type |
Light, Sound, Vibration |
| Operating Humidity - Maximum |
95 % |
| Sensor Type |
Catalytic, Electrochemical |
| Series |
Ventis MX4 |
| Number of Records Stored |
60 Alarm Events |
| Number of Gases Detected |
3 |
| Gas Detected |
Carbon Monoxide, Hydrogen Sulfide, Oxygen |
| Rechargeable Battery |
Yes |
| Operating Temperature - Minimum |
-4 Degrees F |
| Measurement Range |
Carbon Monoxide (0 to 1000 ppm in 1 ppm), Hydrogen Sulfide (0 to 500 ppm in 0.1 ppm), Oxygen (0 to 30% of vol in 0.1%) |
