| Includes |
Calibration Cup, Calibration/Bump Test Tubing, Suspender Clip |
| Features |
IP67 Rated, Replaceable Battery, Replaceable Sensors, Two Button, Water and Dust Resistant |
| Gas Type |
H2S |
| Standards |
ANZEx: Ex ia s Zone 0 I, Ex ia s Zone 0 IIC T4, ATEX: Ex ia I, ATEX: Ex ia IIC T4 Ga, Cl II, Groups F G, Cl l Zone LEL 0, AEx ia d IIC T4 (or AEx ia d IIC T4 IR Sensor), CMA: Approval for Mining Products, CH4,O2,CO,CO2, CSA: Cl I, Gr A-D T4, EAC: PBExiadI X, 1ExiadIICT4 X, Equipment Group and Category: I M1/II 1G, Ex d ia IIC T4, Ex d ia IIC T4 Gb, Ex ia IIC T4 Ga, IECEX: Ex ia I (Ex ia d I IR Sensor), II 1G (or Ex d ia IIC T4 Gb IR Sensor), INMETRO: Ex ia IIC T4 Ga, KC: Ex d ia IIC T4, KIMM: Ex d ia IIC T4, MDR: Registration of Plant Design, CH4,O2,CO,H2S,NO2, MSHA: 30 CRF, Part 22, Intrinsically Safe for Methane/Air Mixtures, PA-DEP: BFE 114-08 Permissible for PA Bituminous Underground Mines, UL Class I Division 1, Groups A, B, C, D, T4 |
| Housing Color |
Orange |
| Sensor Range |
0 to 200 ppm |
| Resolution |
0.1 ppm |
| Interchangeable Sensors |
Yes |
| Alarm Type |
Audible (100dB), Vibrating, Visual |
| Detects |
hydrogen Sulfide |
| Alarm Setting |
Adjustable |
| Battery Type |
3.6V Lithium |
| Display |
Backlit LCD |
| Battery Life |
2 yr |
| Status Indicator |
LED |
| Temp. Range |
-20 Degrees to +50 Degrees C, -4 Degrees to +122 Degrees F |
| Product Type |

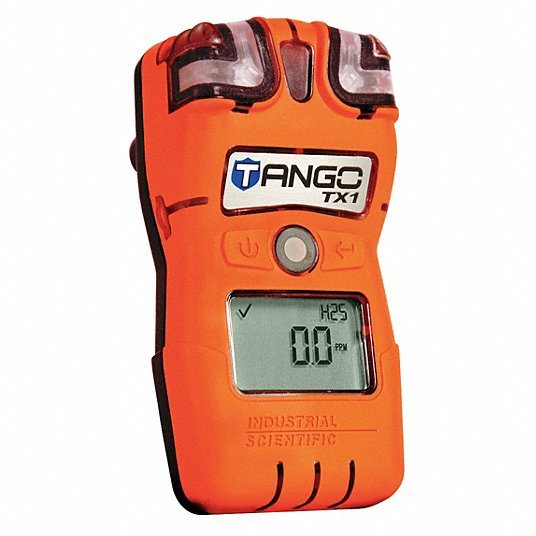

Single-Gas Detector |
| Sensor Type |
Electrochemical |
| Maintainability |
Maintenance-Free |
| Series |
Tango TX1 |
| Replaceable Battery |
Yes |
| Data Logger |
Yes |
| Measurement Range |
0 to 200 ppm |
| Operating Temperature - Minimum |
-40 Degrees F |
| Rechargeable Battery |
No |
| Alarm Volume Level |
100 dB @ 3.9 in |
| Display Screen Type |
LCD |
| Gas Detected |
Hydrogen Sulfide |
| Chemical Formula |
CO, CO/H2, H2S, NO2, SO2 |
| Operating Humidity - Maximum |
95 % |
| Number of Gases Detected |
1 |
| Visual Alert Type |
Blue LED, Red LED |
| Battery Chemistry |
Lithium |
| Battery Voltage |
3.6 V |
| Operating Humidity - Minimum |
95 % |
| Temperature Code |
T4 |
| Includes Probe |
No |
| Operating Temperature - Maximum |
122 Degrees F |
| Alert Type |
Vibration |
| IP Rating |
IP66/IP67 |
