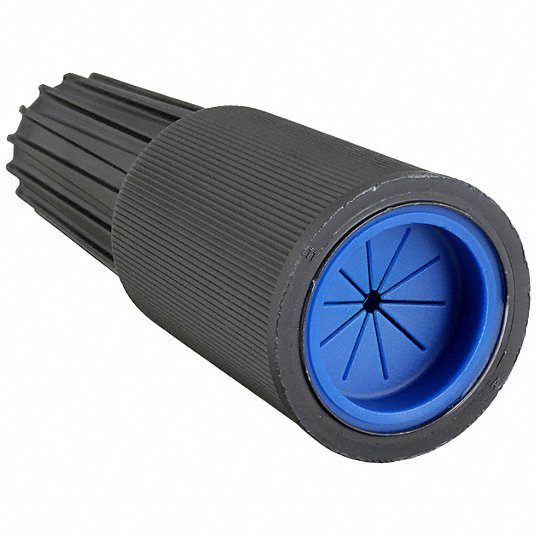

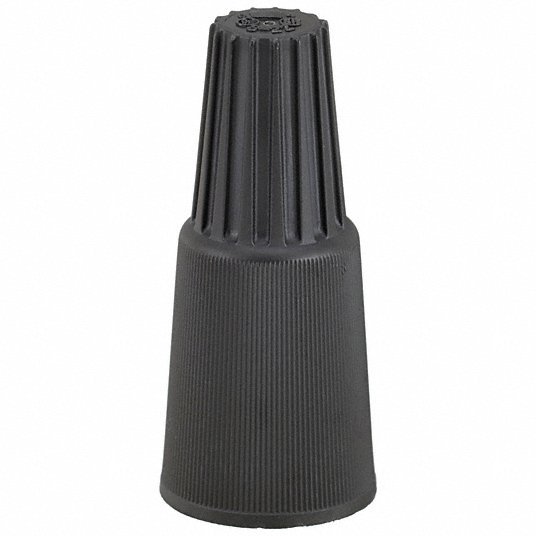

Ideal 30-6064 Twist On Wire Connector, 20-10 AWG, PK10

UPC: 783250758173 | Harmonization / Schedule B : 8536.90.8085

Country of Origin: United States | Shipping Weight: 0.25 lbs

$47.10 - $47.10
$47.10
$47.10 - $47.10
$47.10
Twist On Wire Connector, Color Blue/Gray, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (1) 20 AWG with (1) 18 AWG, Maximum Wire Combination (3) 10 AWG, Contact Material Steel, UL 94 Flammability Rating V-2, Standards CE, CSA Certified, UL Listed, Wire Connector Style Wing, Insulation Material PBT, Maximum Single Wire Size 8 AWG, Minimum Single Wire Size 20 AWG, RoHS Compliant Yes, Package Quantity 10

Color Blue/Gray
Series 60/64
Max. Voltage 600V AC
Wire Connector Style Wing
Min. Wire Combination (1) 20 AWG with (1) to (2) 18 AWG
Max. Wire Combination (1) 10 AWG with (2) 12 AWG to (3) 10 AWG
Application Underground
Item Twist On Wire Connector
Standards CE, CSA Certified, UL Listed
Connector Type 60/64
Max. Temp. 221 Degrees F
Minimum Wire Combination (1) 20 AWG with (1) 18 AWG
For Conductor Material Copper
RoHS Compliant Yes
Maximum Wire Combination (3) 10 AWG
Contact Material Steel
High Temperature Application No
UL 94 Flammability Rating V-2
Maximum Voltage 600 V
Maximum Operating Temperature 221 Degrees F
Insulation Material PBT
Maximum Rated Voltage 600V
Twist-On Style Asst
Minimum Wire Gauge 20 AWG
Maximum Wire Gauge 8 AWG
Termination Method Twist-On
Package Quantity 10
